Specifications
RF & IC Specifications
Protocol
EPC Class 1 Gen 2 / ISO 18000-6C
Frequency
902–928 MHz or 865–868 MHz
Chip
NXP UCODE 9
EPC Memory
96 bit
User Memory
0 bit
Read / Write
Yes
Polarization
Linear
RF Performance Consistency
100% tested with Voyantic Tagformance
Data & Service Life
Data Retention
50 years
Warranty
1 year

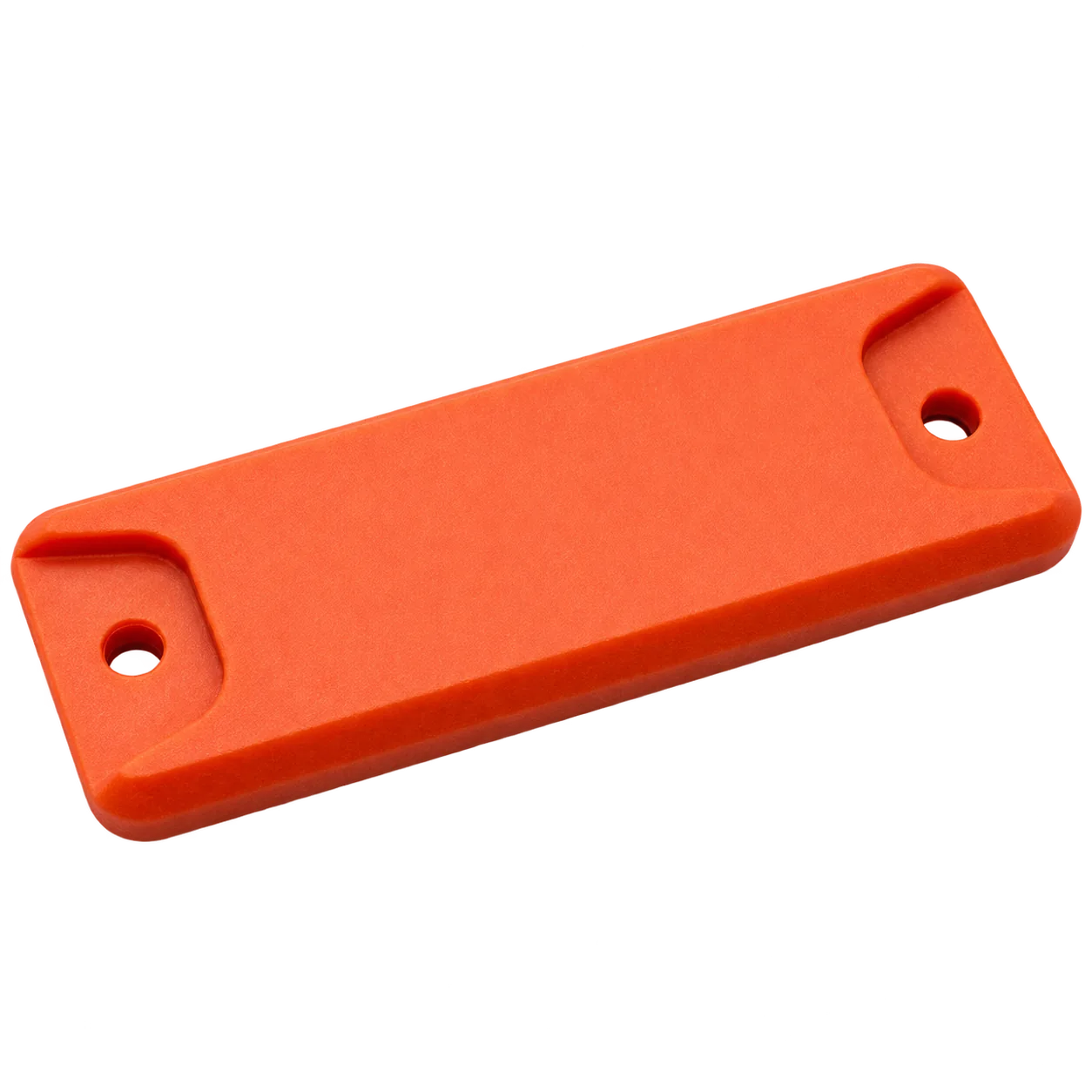

Physical Specifications
Material
ABS for indoor use, or strong weather-resistant polymer for indoor/outdoor use
Color
Orange
Dimensions
70 × 25 × 5 mm
Mounting Hole Diameter
4.12 mm
Mounting Hole Center Distance
58 mm
Installation
M3 screws, aluminum rivets, super glue, or optional double-sided adhesive
Weight
Approx. 5 g
Packaging
Anti-static bag and carton
Environmental & Durability
Operating Temperature
-25°C to +73°C
Storage Temperature
-40°C to +73°C
Humidity
5%–95%
Drop Test
Passed 200 drops from a height of 1 m
Alcohol Resistance
Passed wiping test with 95% alcohol
Gasoline Resistance
Passed wiping test with No. 92 gasoline
Temperature Cycle Test
-40°C to +70°C, 7 cycles, 48 hours total
RoHS
Material certified by SGS
IP Rating
IP67
Read Performance
Fixed Reader Range on Metal
Up to 6 m at 4 W EIRP
Handheld Reader Range on Metal
Up to 5 m
Handheld Test Setup
R2000 RF module, source-listed +33 dBi power and 4 dBi antenna in outdoor open space; results may vary by reader
