— 200°C for 180 days, 230°C peak exposure, up to 5 m read range and IP68

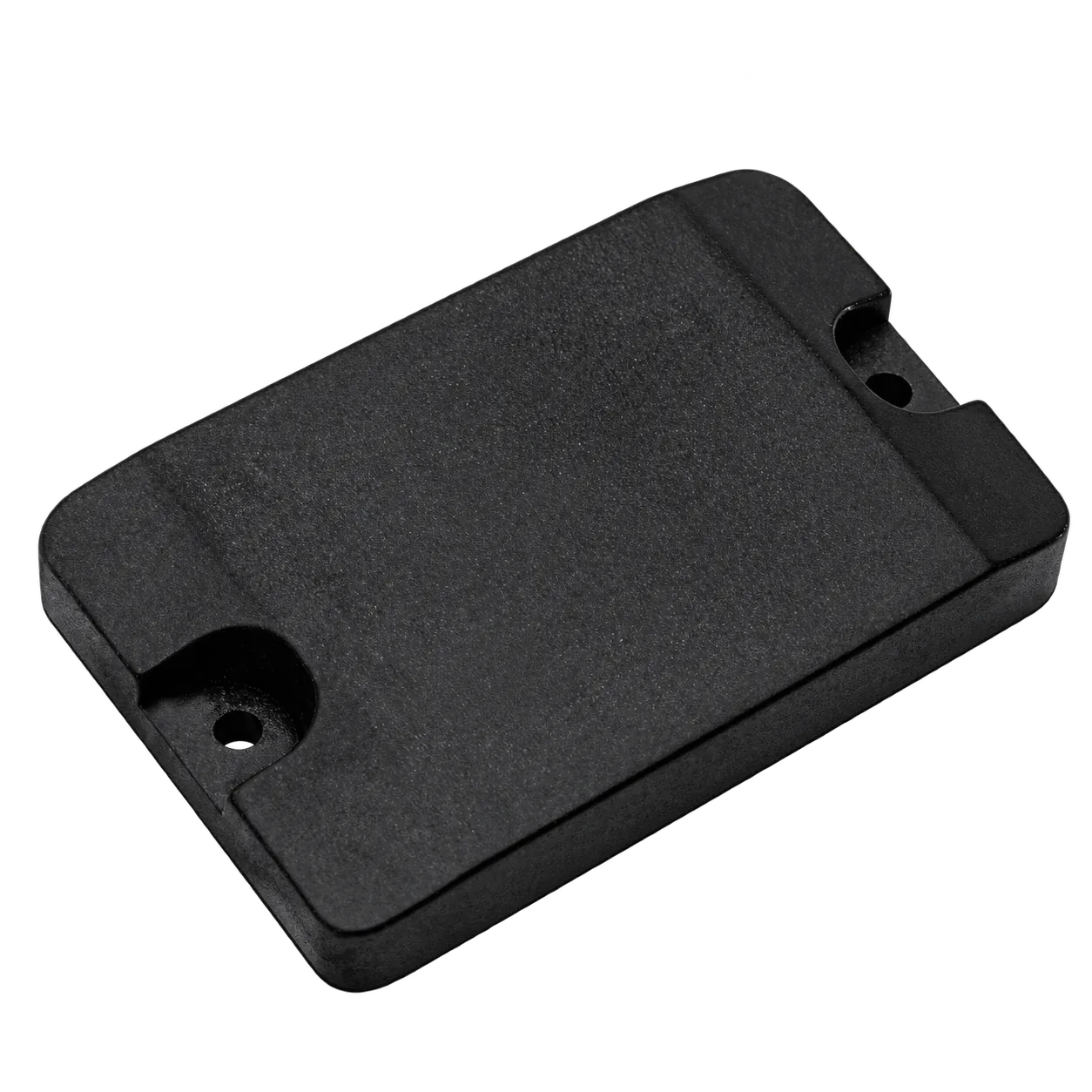

Pls4631Pro 230°C UHF On-Metal RFID Tag for High-Heat Equipment

The Pls4631Pro is a rugged UHF RFID tag designed for metal and non-metal assets exposed to sustained high temperatures. Its engineering-plastic enclosure supports 200°C for 180 days and a peak temperature of 230°C for one hour. With EPC Class 1 Gen 2 / ISO 18000-6C compatibility, up to 5 meters of read range and IP68 protection, it fits industrial equipment, metal containers and fixed-asset tracking.

Description

Specifications

RF & IC Specifications

Protocol

EPC Class 1 Gen 2 / ISO 18000-6C

Frequency

902-928 MHz or 865-868 MHz

Chip Options

Alien H3 or NXP chips

Alien H3 Memory

EPC 96 bits; User 512 bits

Read / Write

Yes

Data & Service Life

Data Retention

20 years

Warranty

1 year

Physical Specifications

Material

Engineering plastics

Dimensions

46 x 31 x 7.5 mm

Color

Black

Installation

Screw, rivet, glue or 3M tape

Environmental & Durability

Operating Temperature

-25°C to +115°C

High-Temperature Test

200°C for 180 days; passed

Storage Temperature

-40°C to +220°C

Peak Temperature

230°C for 1 hour

Storage Humidity

5% to 95%

Alcohol Resistance

Passed 95% alcohol test

Gasoline Resistance

Passed

Temperature Shock Test

-40°C to +150°C, 7 cycles over 48 hours; passed

RoHS

Compatible; SGS certified

IP Rating

IP68

Read Performance

Read Range on Metal

Up to 5 m

Read Range off Metal

Up to 5 m

Performance Testing

100% function tested using Voyantic Tagformance

Customization

Surface Printing

Logo printing available

Laser Marking

Barcode laser marking available
