Specifications
RF & IC Specifications
HF Protocol
ISO/IEC 15693
UHF Protocol
ISO/IEC 18000-63
HF Frequency
13.56 MHz
UHF Frequency
902–928 MHz
Chip
EM4425
HF UID
64 bit
UHF TID
96 bit
EPC Memory
480 bit
User Memory
1,568 bit
Read / Write
Yes
Polarization
Linear
Data & Service Life
Data Retention
50 years
Warranty
1 year

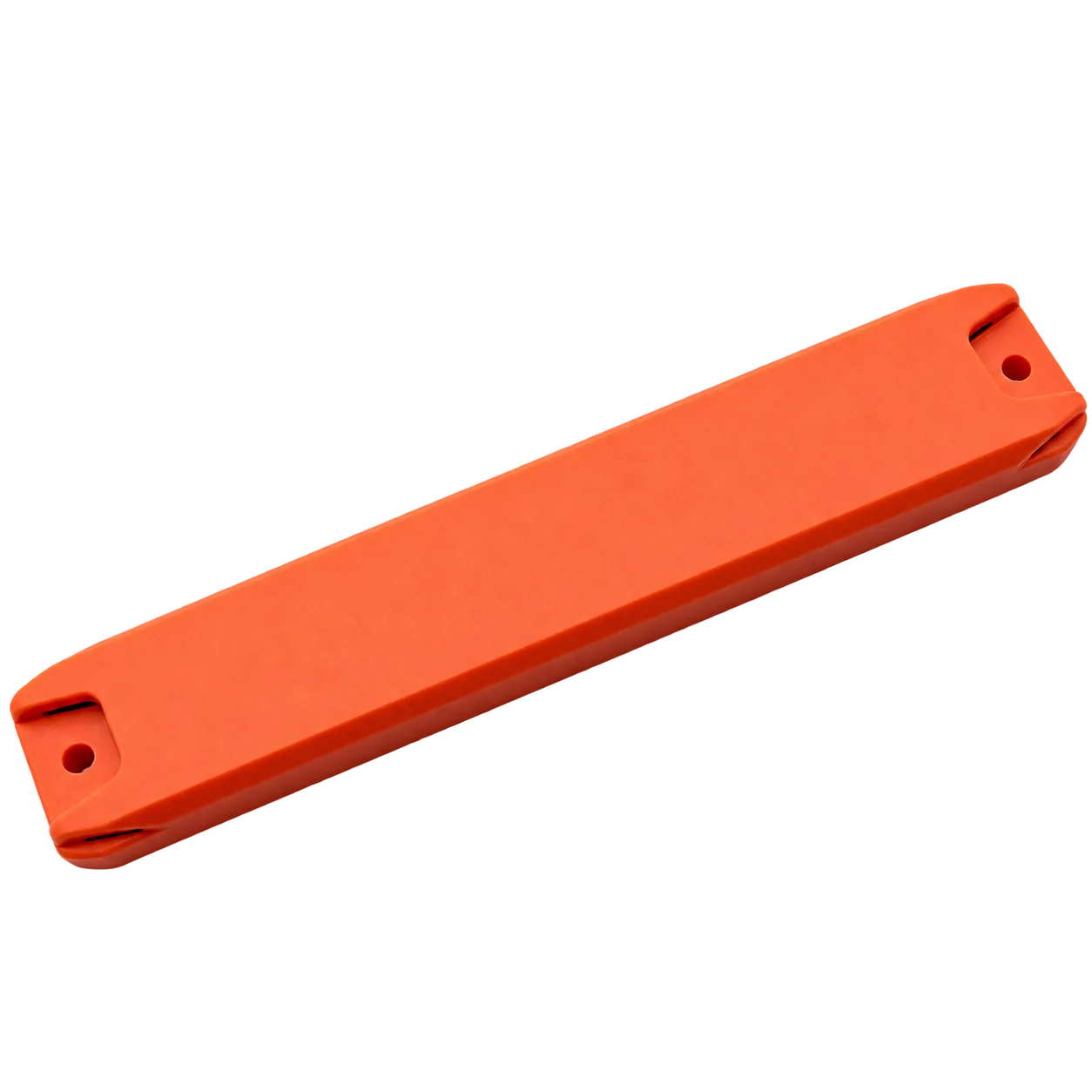

Physical Specifications
Material
ABS for indoor use, or strong weather-resistant polymer for indoor/outdoor use
Color
Orange
Dimensions
155 × 30 × 10 mm (6.102 × 1.181 × 0.393 in)
Mounting Hole Diameter
4 mm
Mounting Hole Center Distance
143 mm
Installation
Screws, aluminum rivets, super glue, optional double-sided adhesive, plastic cable ties, or metal cable ties
Weight
Approx. 28 g
Packaging
Anti-static bag and carton
Environmental & Durability
Operating Temperature
-25°C to +70°C
Storage Temperature
-40°C to +70°C
Humidity
5%–95%
Drop Test
Passed 200 drops from a height of 1 m
Alcohol Resistance
Passed wiping test with 95% alcohol
Gasoline Resistance
Passed wiping test with No. 92 gasoline
Temperature Cycle Test
-40°C to +70°C, 7 cycles, 48 hours total
RoHS
Material certified by SGS
IP Rating
IP67
Read Performance
Fixed Reader Range on Metal / Off Metal
Up to 12 m
Fixed Reader Test Setup
4 W EIRP, Alien 9900 reader; results may vary by reader
Handheld Range on Metal / Off Metal
Up to 8 m, as printed in source
Handheld Range on Non-Metal
Up to 3 m, as printed in source
Handheld Test Setup
R2000 RF module, source-listed +33 dBi power and 4 dBi antenna in outdoor open space; results may vary by device
