Specifications
RF & IC Specifications
Protocol
EPC Class 1 Gen 2 / ISO 18000-6C
Frequency
865–928 MHz
Chip
NXP UCODE 9
EPC Memory
96 bit
User Memory
0 bit
Read / Write
Yes
Polarization
Linear
Data & Service Life
Data Retention
50 years
Warranty
1 year

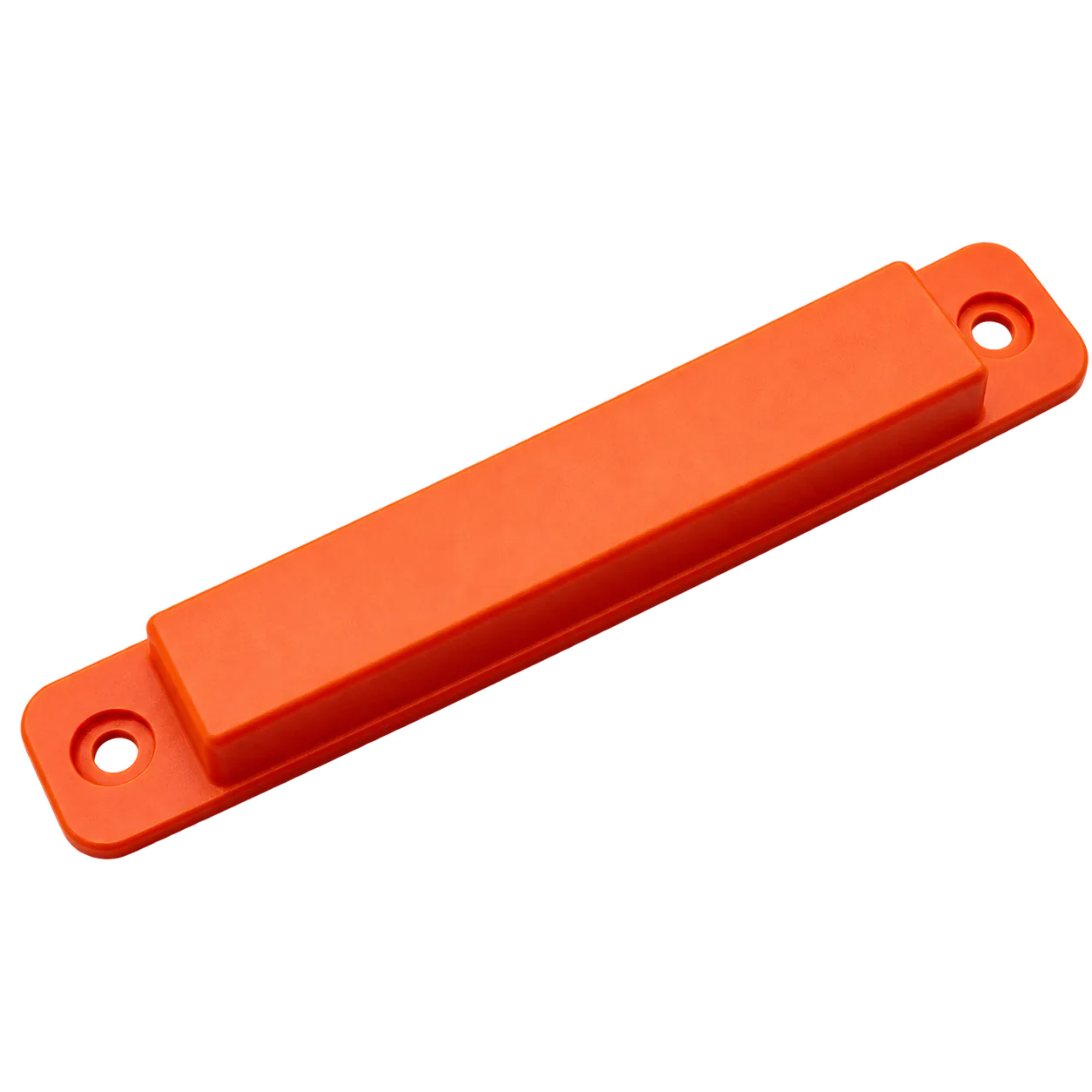

Physical Specifications
Material
ABS for indoor use, or strong weather-resistant polymer for indoor/outdoor use
Color
Orange
Dimensions
135 × 22 × 12 mm (5.314 × 0.866 × 0.472 in)
Positioning Hole Diameter
4.45 mm
Positioning Hole Center Distance
119.8 mm
Installation
Screws, aluminum rivets, super glue, or optional double-sided adhesive
Weight
Approx. 12 g
Packaging
Anti-static bag and carton
Environmental & Durability
Operating Temperature
-25°C to +70°C
Storage Temperature
-40°C to +70°C
Humidity
5%–95%
Drop Test
Passed 200 drops from a height of 1 m
Alcohol Resistance
Passed wiping test with 95% alcohol
Gasoline Resistance
Passed wiping test with No. 92 gasoline
Temperature Cycle Test
-40°C to +70°C, 7 cycles, 48 hours total
RoHS
Material certified by SGS
IP Rating
IP67
Read Performance
Fixed Reader Range on Metal
0–10 m
Fixed Reader Range Off Metal
0–25 m
Handheld Reader Range on Metal
0–8 m
Handheld Reader Range Off Metal
0–20 m
