— Stable on and off metal, NXP or Fujitsu memory options, IP67 industrial PPS housing

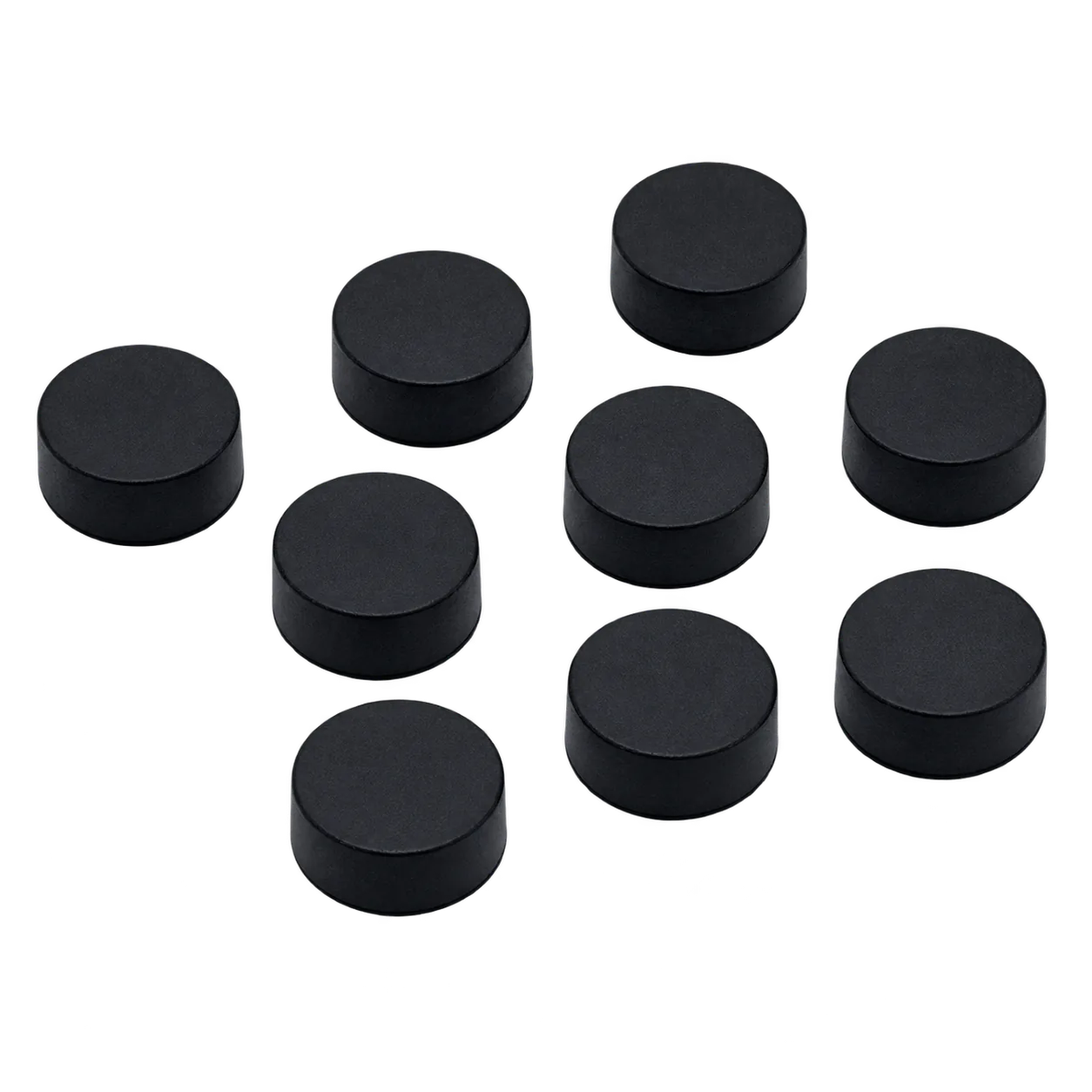

Pls1004 Compact 13.56 MHz HF RFID Tag for Tools and AGV Tracking

The Pls1004 is a compact HF RFID transponder for industrial fixtures, tools, production tracking, warehouse inventory and AGV landmark management. It operates at 13.56 MHz under ISO 15693 and supports either NXP ICODE SLIX or Fujitsu FRAM memory. The PPS enclosure performs on both metal and non-metal surfaces and provides IP67 protection with tested resistance to drops, alcohol, gasoline and temperature shock.

Description

Specifications

RF & IC Specifications

Protocol

ISO 15693

Frequency

13.56 MHz

Chip Options

NXP ICODE SLIX or Fujitsu MB89R118C1-DIAP15

ICODE SLIX Memory

896 bits

Fujitsu Memory

FRAM, 2 KB

Read / Write

Yes

Read Range off Metal

0 to 20 mm

Read Range on Metal

0 to 18 mm

Data & Service Life

Data Retention

50 years

Warranty

1 year

Physical Specifications

Material

PPS

Dimensions

Diameter 10 mm x 4 mm or 4.5 mm thick; tolerance ±0.15 mm

Weight

3 g

Color

Black; custom colors available

Installation

Glue or optional 3M tape

Packaging

Carton

Environmental & Durability

Operating Temperature

-25°C to +80°C

Storage Temperature

-40°C to +130°C

Storage Humidity

5% to 95%

Drop Test

Passed 200 drops from a height of 1 m

Alcohol Resistance

Passed 95% alcohol wipe test

Gasoline Resistance

Passed No. 92 gasoline wipe test

Temperature Shock Test

-40°C to +130°C, 7 cycles over 48 hours; passed

RoHS

Compatible; SGS certified

IP Rating

IP67

Chemical Resistance

Acid and alkali resistant

Water Resistance

Waterproof

Customization

Surface Printing

Logo printing available

Laser Marking

Code laser marking available
