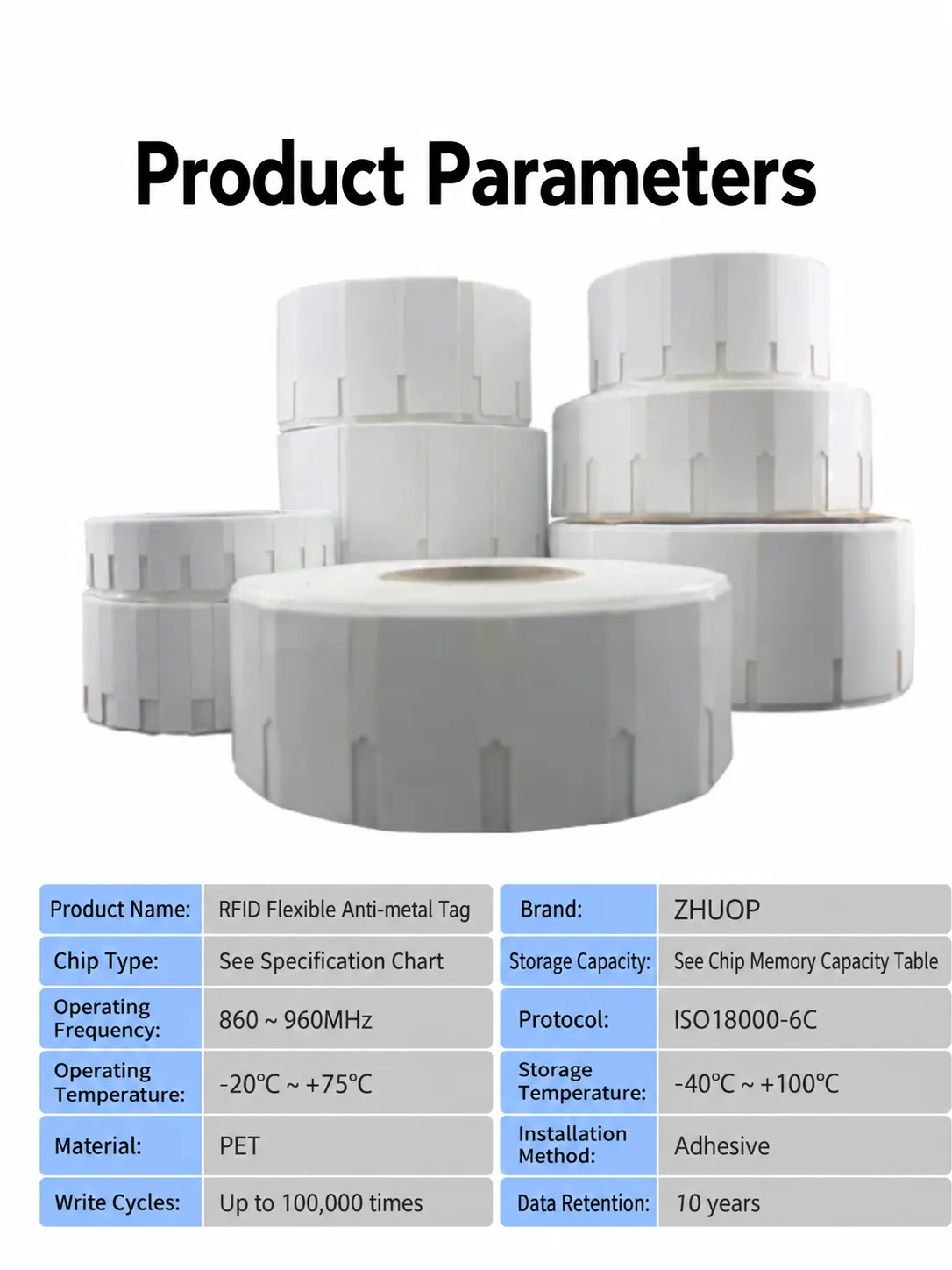

Specifications
General RFID Specifications
Product Series
PF Series Flexible UHF RFID On-Metal Tag
Frequency Range
860–960 MHz
Air Interface Protocol
ISO 18000-6C / EPC Class 1 Gen 2
Working Mode
Passive UHF RFID
Material / Surface
PET / Designed for Metal Surfaces
Tag Thickness
1.2 mm
Standard SKU Performance
PF3015
30 × 15 × 1.2 mm | Chip / range varies by stock

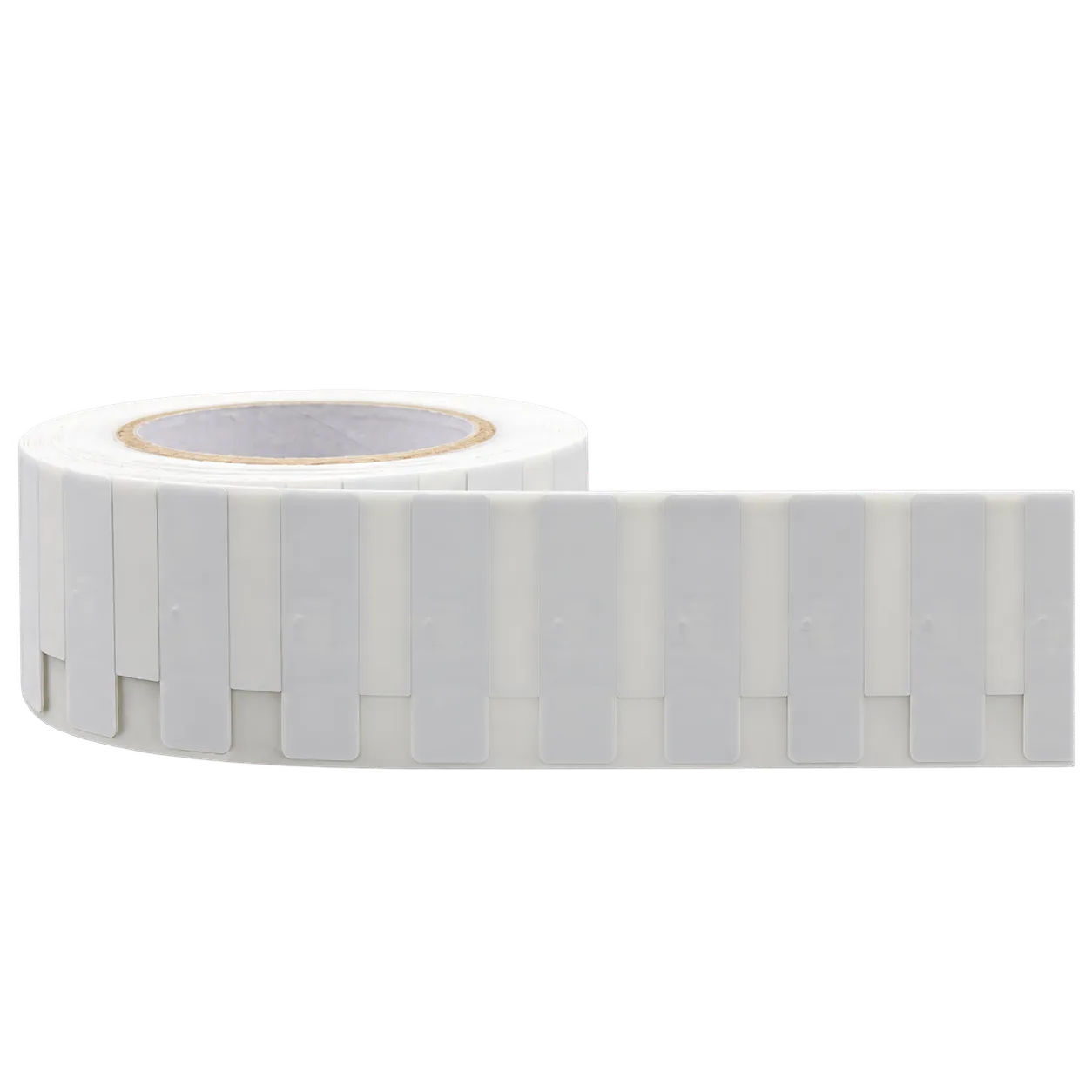

PF5515
55 × 15 × 1.2 mm | MR6-P / U8 / U9 | ≈4 m
PF6025
60 × 25 × 1.2 mm | MR6-P / U8 / U9 | ≈5 m

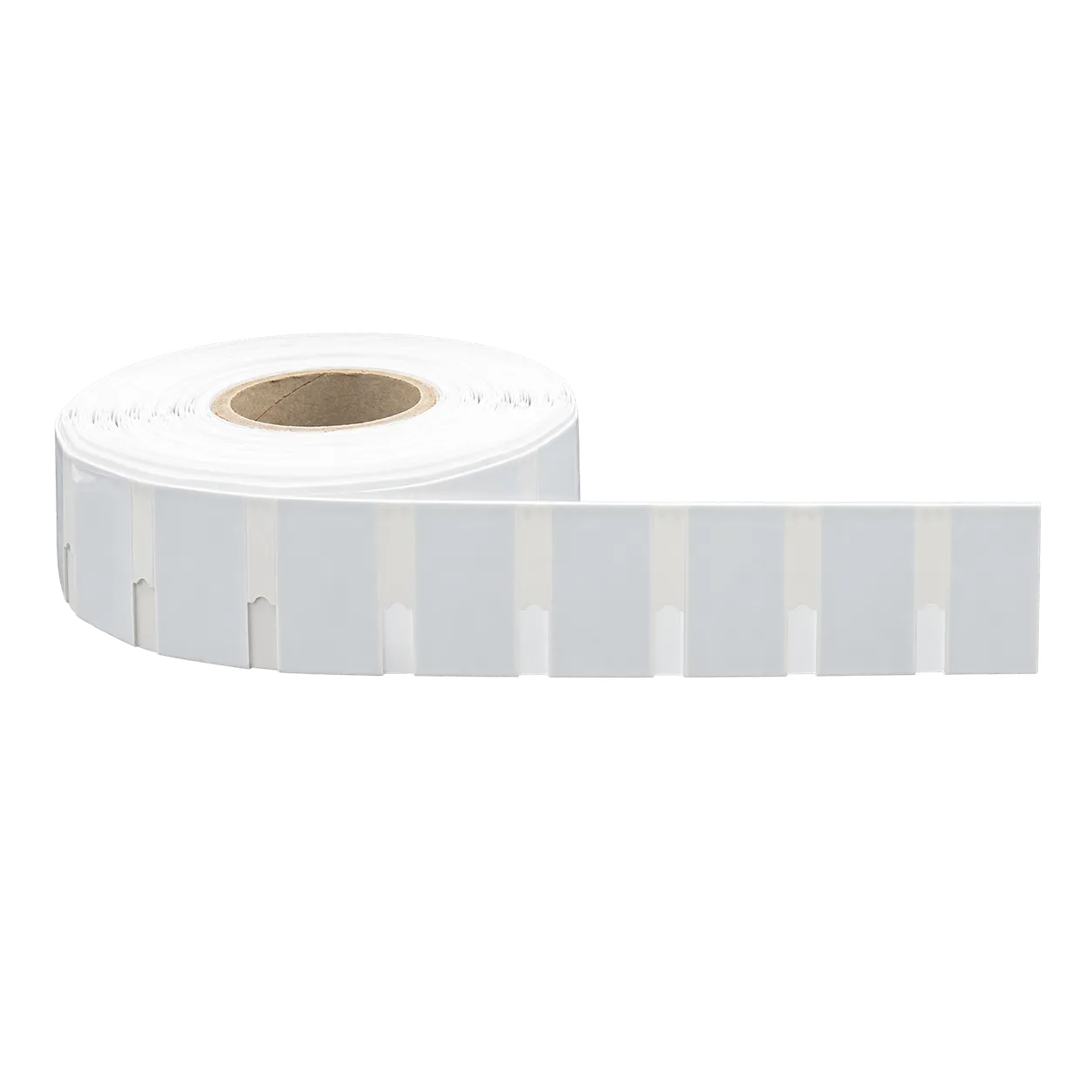

PF6535
65 × 35 × 1.2 mm | MR6-P / U8 / U9 | ≈7 m

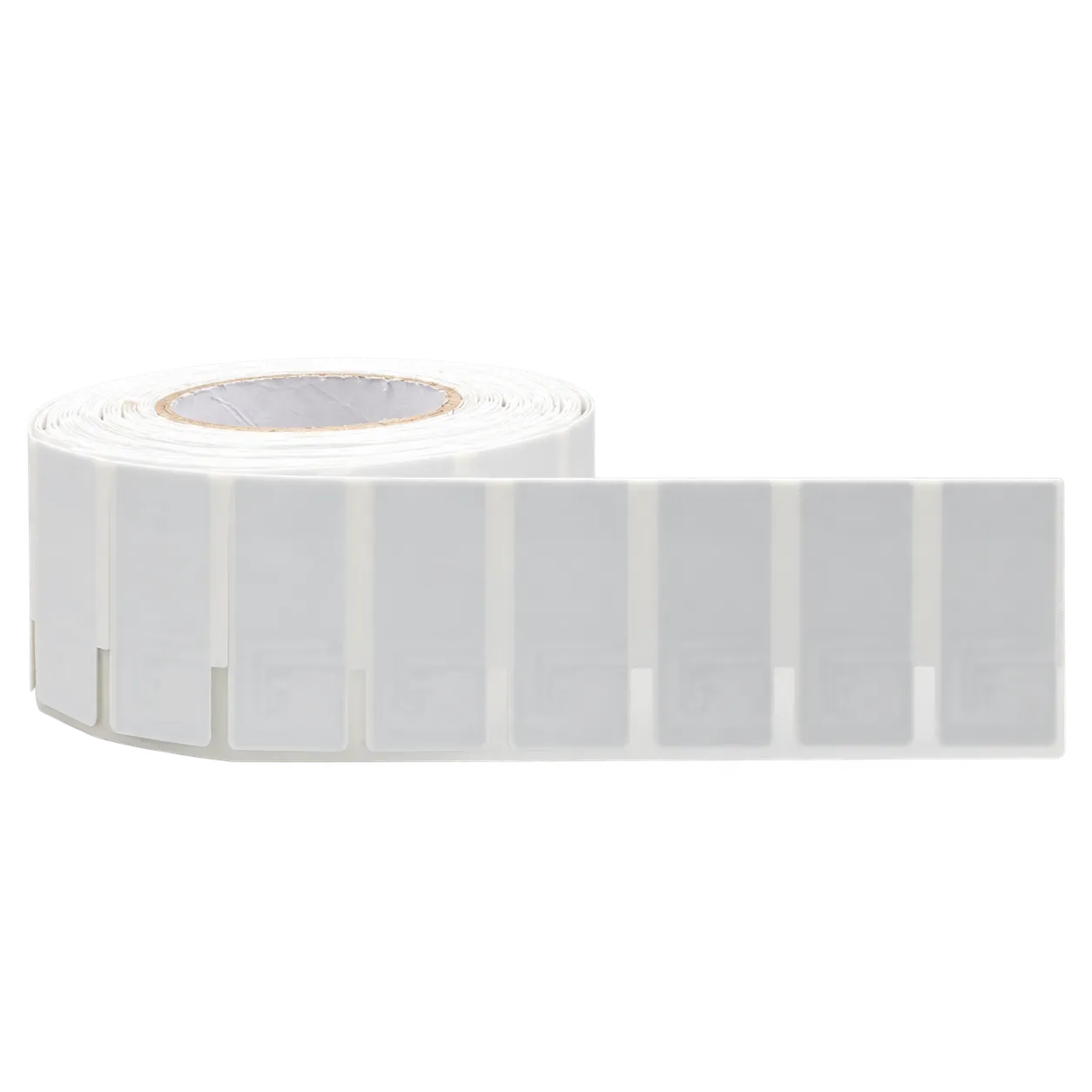

PF7030
70 × 30 × 1.2 mm | MR6-P / U8 / U9 | ≈7 m
PF8040
80 × 40 × 1.2 mm | MR6-P / U8 / U9 | ≈10 m
Backing
PET + Adhesive
Common Features
Anti-Metal Interference / Flexible Construction
Stock Note
Chip / antenna model may vary by available stock
3M Adhesive SKU Performance
PF3015 + 3M
30 × 15 × 1.2 mm | R6P | ≈1 m
PF5520 + 3M
55 × 20 × 1.2 mm | R6P | ≈4 m

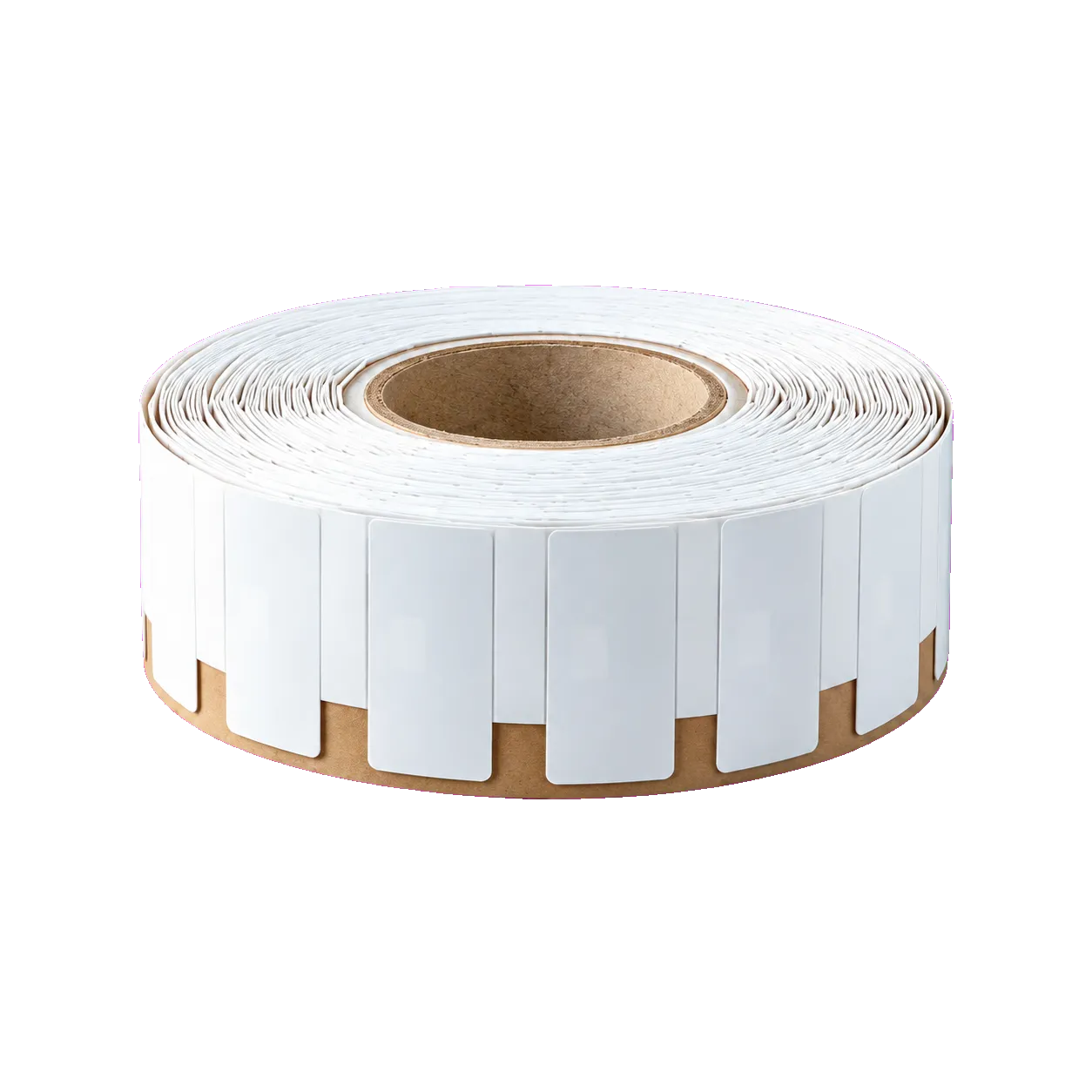

PF6025 + 3M
60 × 25 × 1.2 mm | R6P | ≈5 m

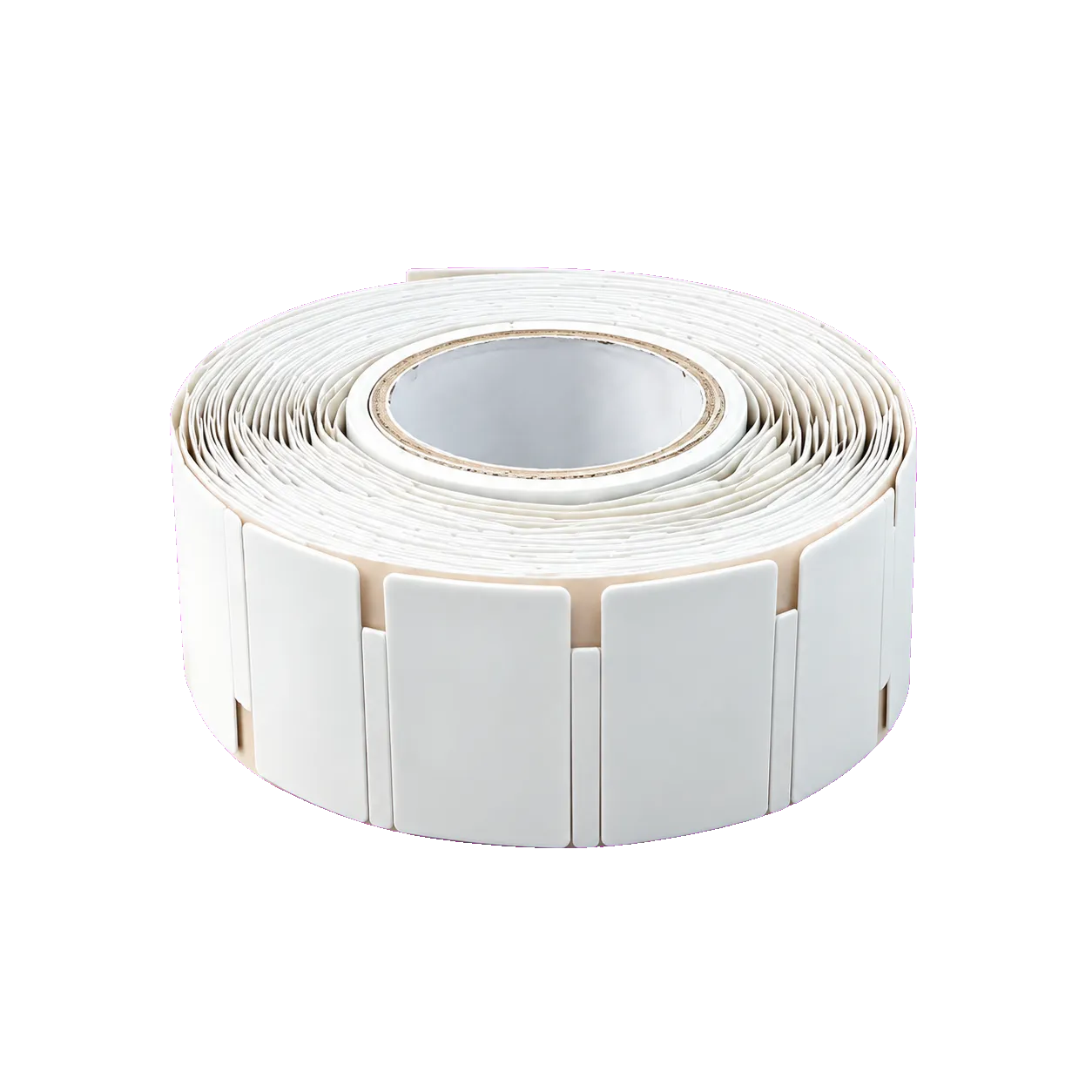

PF6535 + 3M
65 × 35 × 1.2 mm | R6P | ≈7 m
PF7030 + 3M
70 × 30 × 1.2 mm | U9 | ≈7 m

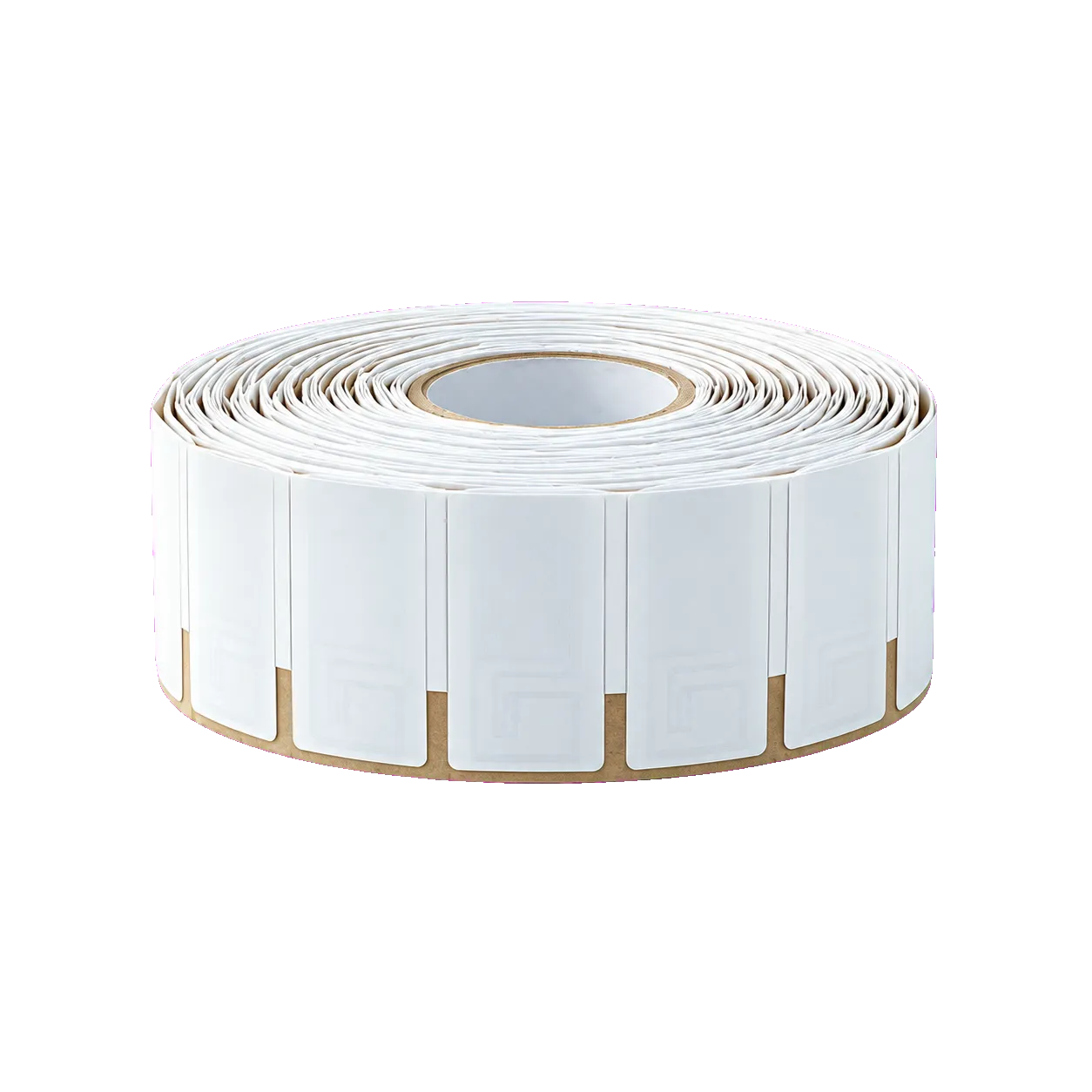

PF7040 + 3M
70 × 40 × 1.2 mm | U9XE | ≈9 m
Backing / Protection
PET + 3M Adhesive / Waterproof / Oil-Resistant / Scratch-Resistant
Read Range Note
Lab reference only; actual range varies by reader, tag orientation and environment

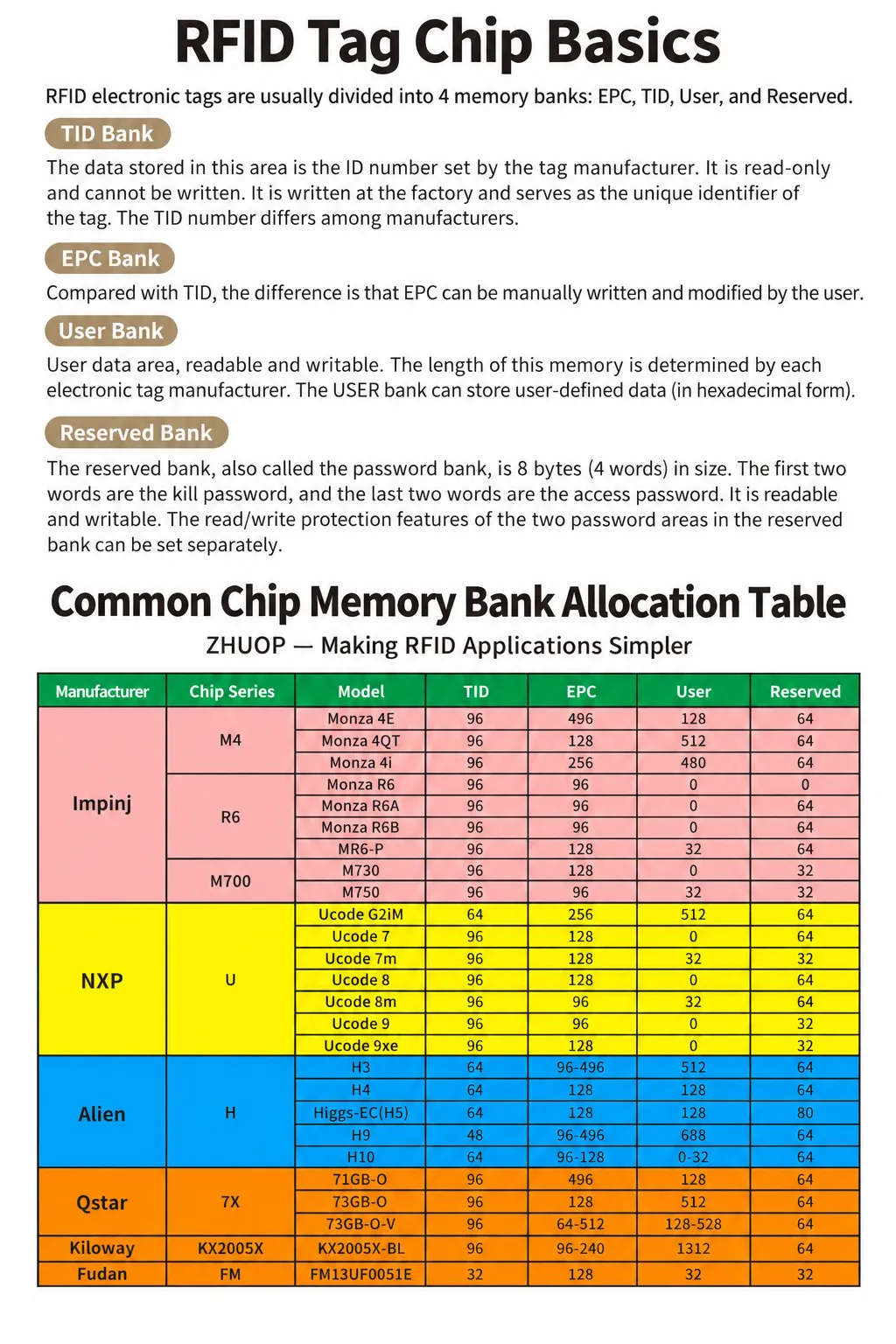

Chip & Memory Reference
Memory by Chip
MR6-P: TID 96 / EPC 128 / User 32 / Reserved 64 bits
U8: TID 96 / EPC 128 / User 0 / Reserved 64 bits
U9: TID 96 / EPC 96 / User 0 / Reserved 32 bits
U9XE: TID 96 / EPC 128 / User 0 / Reserved 32 bits
U8: TID 96 / EPC 128 / User 0 / Reserved 64 bits
U9: TID 96 / EPC 96 / User 0 / Reserved 32 bits
U9XE: TID 96 / EPC 128 / User 0 / Reserved 32 bits
Ordering Note
Confirm actual chip, antenna and read range before order; dimensions are manually measured and may have about ±1 mm tolerance
