Specifications
RF & IC Specifications
Protocol
EPC Class 1 Gen 2 / ISO 18000-6C
Frequency
902-928 MHz or 865-868 MHz
Chip
Impinj M730
EPC Memory
128 bits
User Memory
0 bits
Read / Write
Yes
Polarization
Linear
Data & Service Life
Data Retention
20 years
Warranty
1 year
Storage Conditions
1 year at +20°C / 50% relative humidity

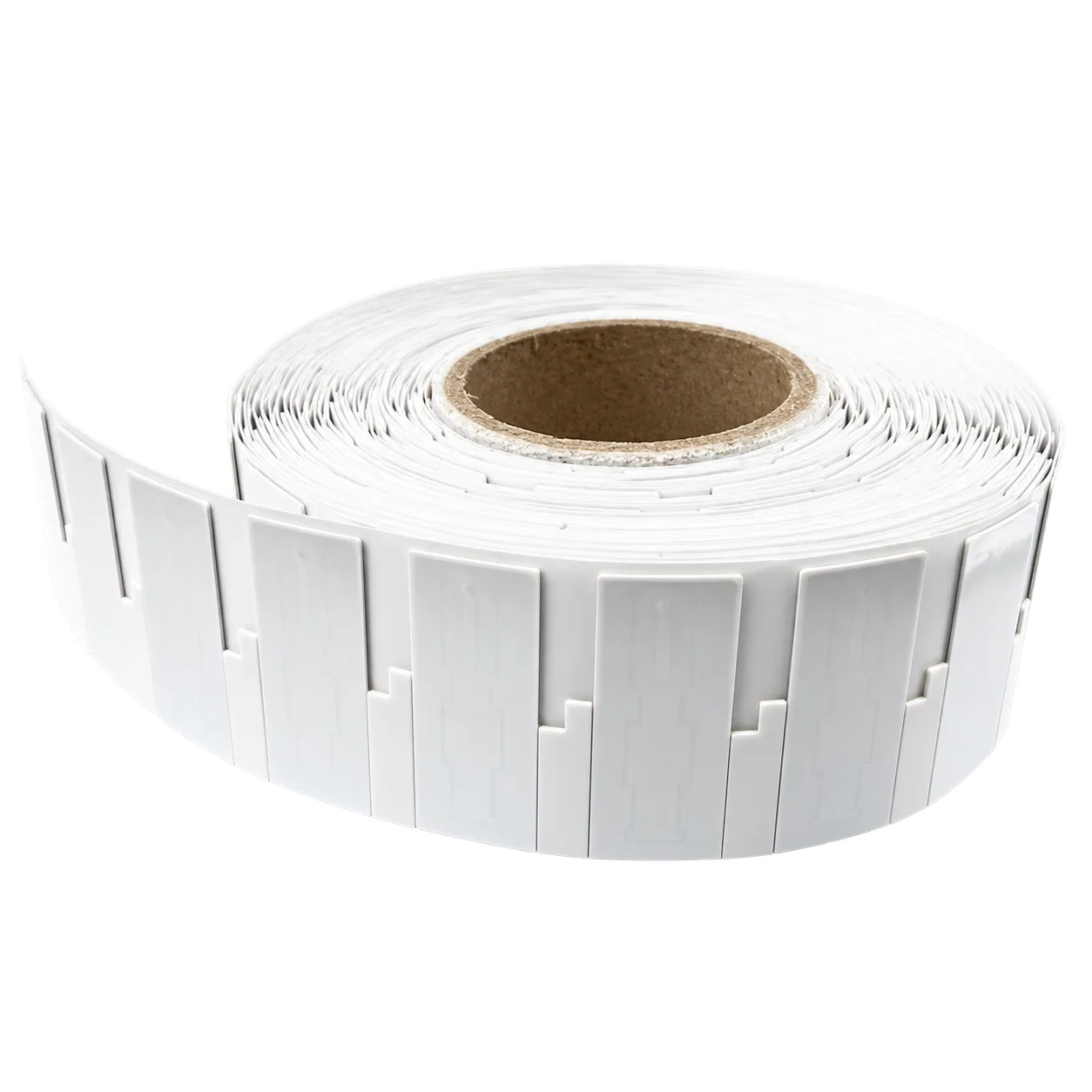

Physical Specifications
Material
Domestic film and domestic adhesive
Color
White
Dimensions
60 x 25 x 1.25 mm (2.362 x 0.984 x 0.049 in)
Installation
Domestic adhesive
Weight
0.834 kg per roll
Packaging
Anti-static bag and carton; 500/200 pieces per roll/small box; 4 rolls and 2,000/800 pieces per master carton
Minimum Curved Surface Diameter
20 mm
Environmental & Durability
Operating Temperature
-40°C to +75°C
Humidity
5% to 95%
Drop Test
Passed 200 drops from a height of 1 m
Alcohol Resistance
Passed 95% alcohol wipe test after resin-ribbon printing
Temperature Cycle Test
-40°C to +75°C, 7 cycles over 48 hours
Double 85 Test
+75°C and 85% humidity for 148 hours; passed
RoHS / SVHC
Passed
IP Rating
IP68
RF Performance Consistency
100% passed Voyantic Tagsurance testing
Read Performance
Read Range on Metal
Up to 6 m
Read Range on Plastic
Up to 7 m
Read Range on Glass
Up to 6 m
Read Range on Carton
Up to 2.6 m
Read Test Setup
Handheld reader with Impinj R2000 RF module, +33 dBm power and 4 dBi antenna; results may vary by device
Printing & Customization
Printer Compatibility
Compatible with SATO, Toshiba, Postek and similar RFID printers
Print Ribbon
Full resin carbon ribbon
Optional Processing
Pre-encoding, surface logo or text, barcode or QR code
