— up to 20 m reading range, 400 reads/s speed, -85 dBm sensitivity

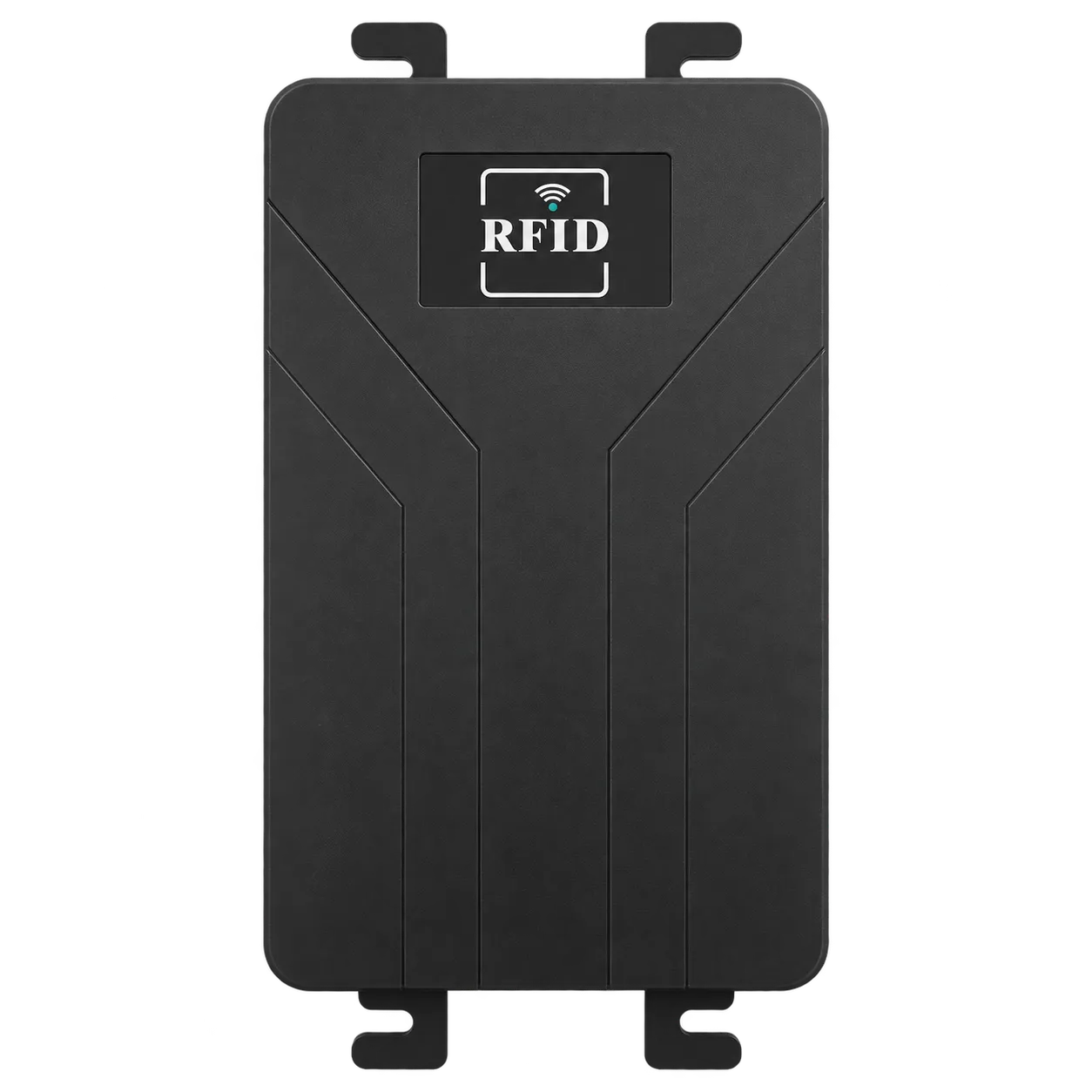

GK704C – 4-Port UHF RFID Fixed Reader/Writer

The GK704C is a high-performance 4-port UHF RFID fixed reader/writer designed for long-range, high-speed multi-tag identification. It supports 920–925 MHz, 902–928 MHz and 865–868 MHz, with RF output power up to 33 dBm and receive sensitivity down to -85 dBm. With a reading distance of up to 20 meters, writing distance of up to 7 meters, 400 reads per second and 600-tag processing within 3 seconds, it is suitable for asset management, warehousing, access control and vehicle management applications.

Description

Specifications

Basic Parameter

Product Model
GK704C

Frequency Range

920–925 / 902–928 / 865–868 MHz
RF Output Power
0–33 dBm / 33 dBm ±1 dB Max.
Reader Type
Fixed Four-Port Reader/Writer
Dimensions
224 × 117.2 × 33 mm
Weight

850 g

RFID Performance

Air Interface Protocol
ISO 18000-6C / EPC Gen2
Read Distance
Up to 20 m
Write Distance
Up to 7 m
Read Speed
400 Reads/s
Multi-Tag Processing
600 Tags / 3 s

Receive Sensitivity

-85 dBm
Frequency Mode
FHSS / Fixed Frequency
Read Success Rate
>95% / 100 Continuous Reads
Write Success Rate

>90% / 100 Continuous Writes

Interfaces & Connectivity

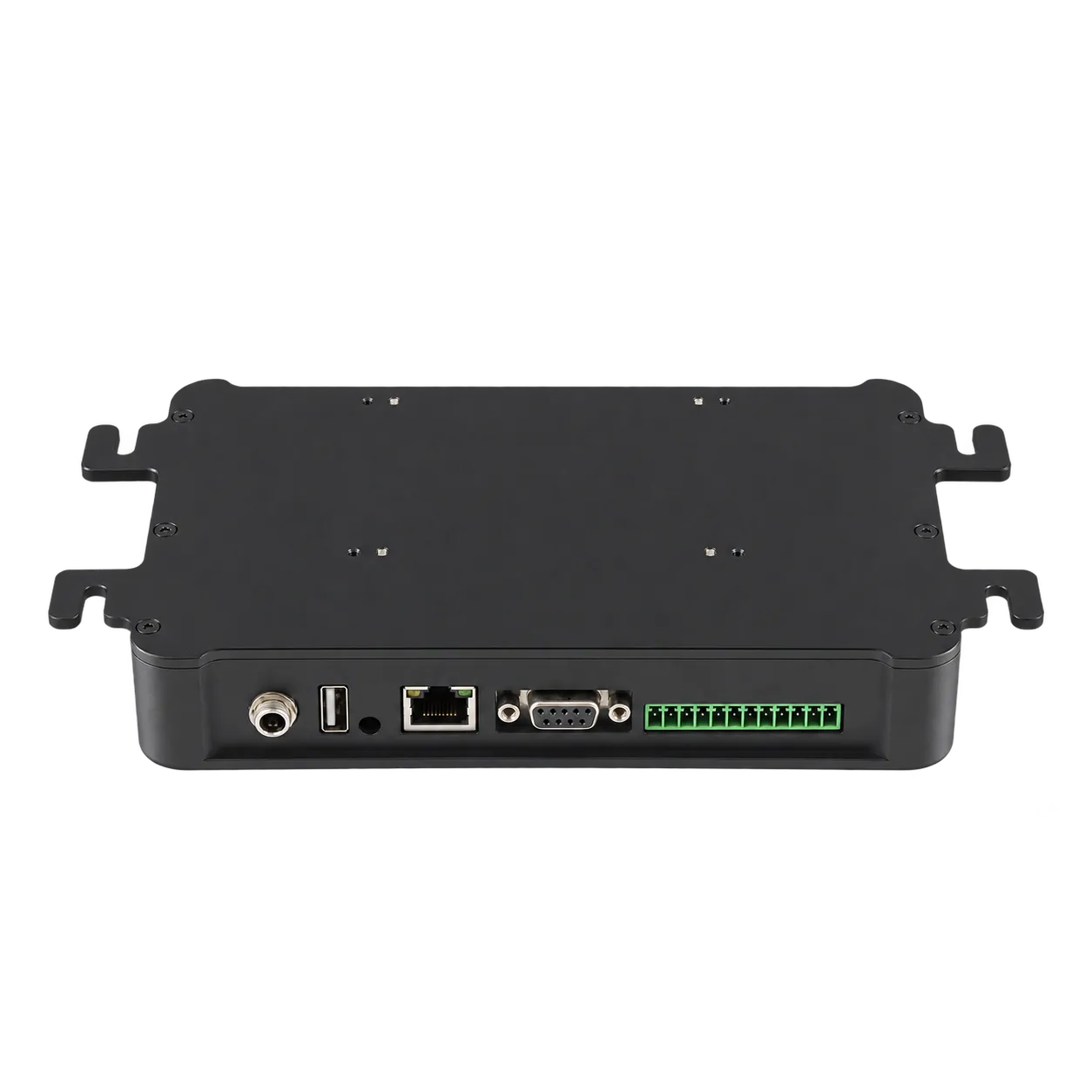

Communication Interfaces
RS232 / RS485 / RJ45

Ethernet

10M / 100M Adaptive
GPIO
2 Inputs / 2 Relay Outputs
RS-232 Baud Rate
9600 / 19200 / 115200 / 460800
Status Indicator
Buzzer
Working Voltage
DC 9–24 V
Case Material
CNC Aluminum
Color
Black

Applications & Support

Typical Applications
Asset / Warehouse / Access / Vehicle Management
Protocol Options
GB/T29768 / GJB7377.1 Customizable

Project RFQ

Tell us your RFID application. Get a more accurate model recommendation or solutions.

Tell us the product type, frequency, read distance, installation environment, quantity and system interface. Our team will return suitable models, datasheets, sample options and bulk pricing.

Application scenario and reading distance

Frequency / protocol requirement

Tag material, size, printing and encoding

Reader interface, SDK and software environment
