— Octa-core 2.0GHz, Android 10/13, 8000mAh Battery

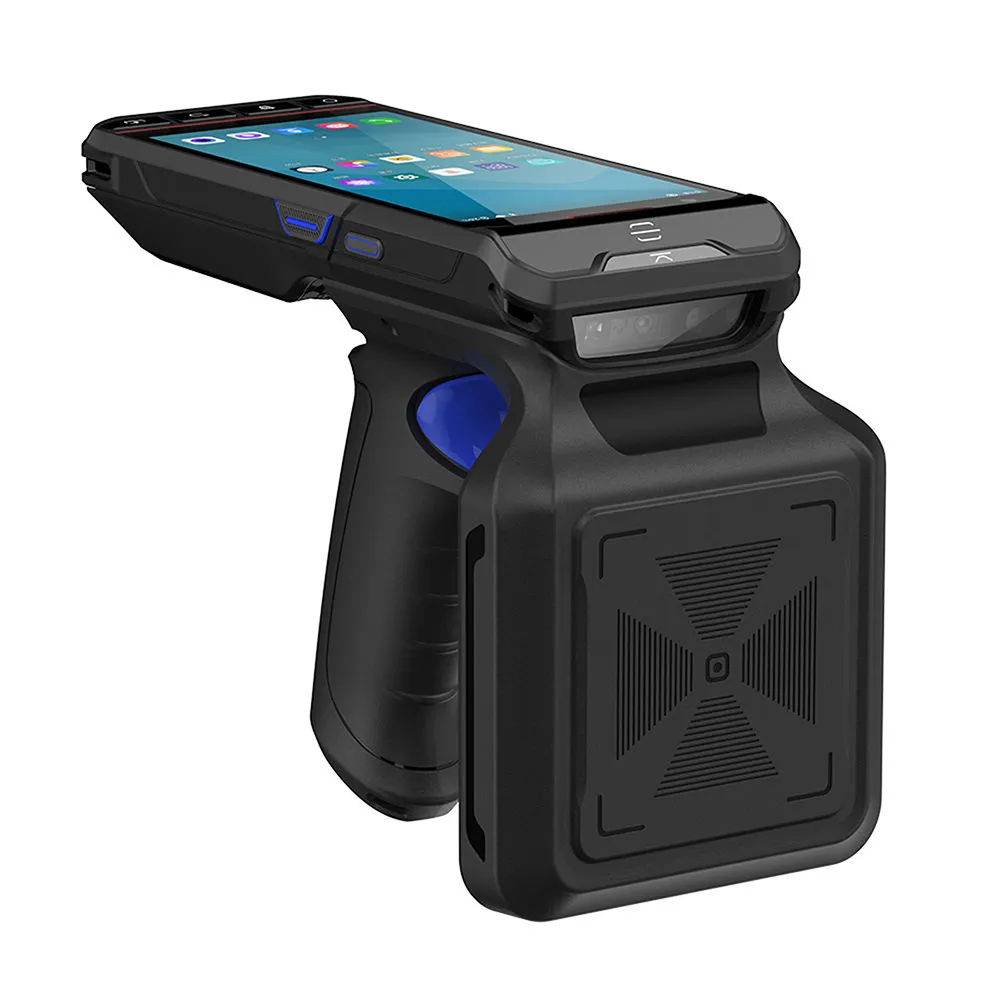

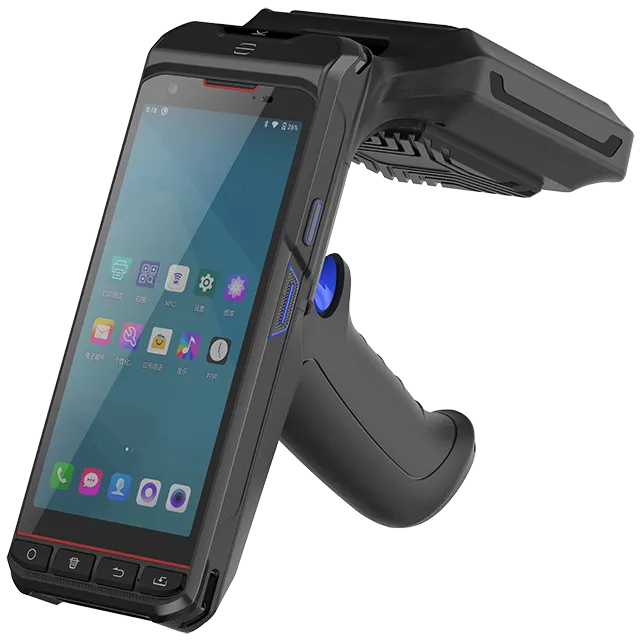

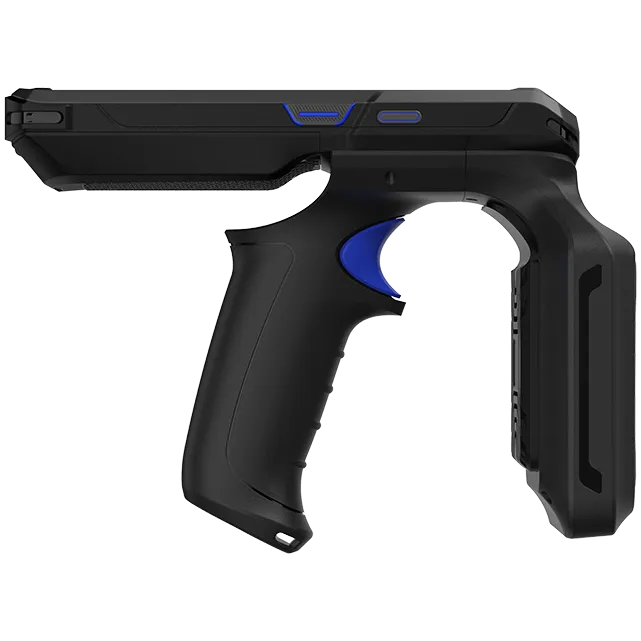

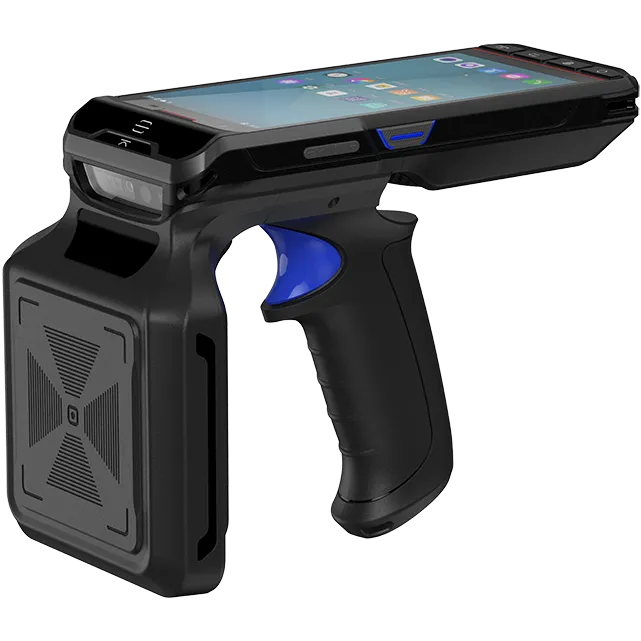

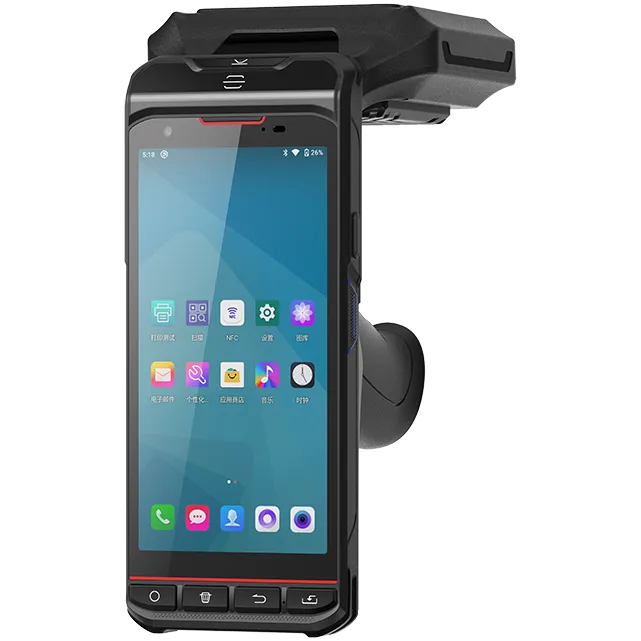

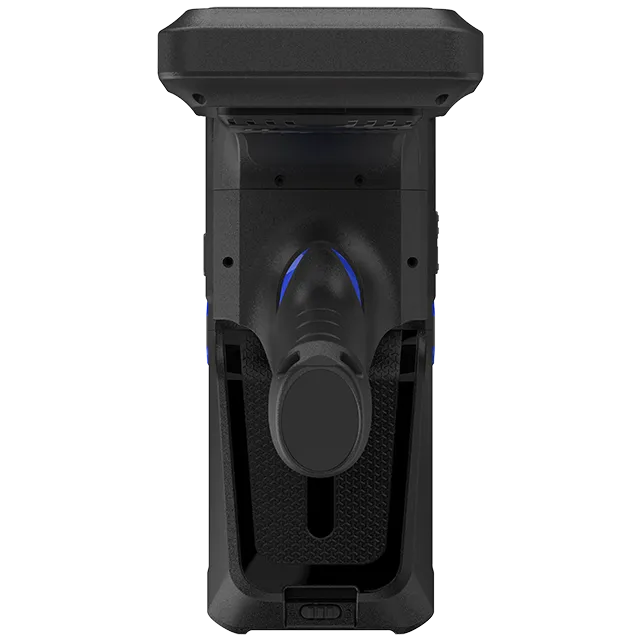

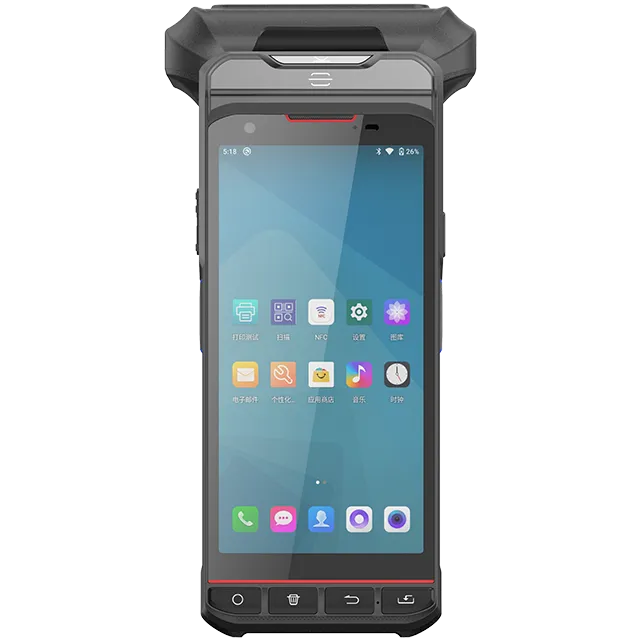

G2 – Handheld UHF RFID Reader
G2 is an Android rugged RFID reader that boasts best-in-class UHF RFID capability. Built with embedded NATIONRFID GXR03, it enables more than 20m read distance and more excellent performance. The RFID reader features optional barcode scanning, Octa-Core processor and 8000mAh powerful battery to perfectly meet demands in intensive applications, especially in asset management, retail, warehousing, apparel inventory, expressway toll, fleet management, finance, etc.
Specifications
Performance
CPU
MT6762 Octa-core 64-bit 2.0GHz
RAM + ROM
4GB+64GB
Expandable
Micro SD (TF) card expandable up to 256GB
Operating System
Android 10.0/Android 13.0
Data
WLAN
Dual-band 2.4GHz/5GHz, supports IEEE 802.11ac/a/b/g /n/d/e/h/i/j/k/r/v protocols
WWAN
2G: GSM (850/900/1800/1900MHz)
3G: WCDMA (850/900/1900/2100MHz)
4G: FDD: B1/B3/B4/B7/B8/B12/B20
TDD: B38/B39/B40/B41
Bluetooth
Supports Bluetooth 5.0+BLE, transmission distance 5-10
GNSS
Supports GPS, Galileo, Glonass, and Beidou
Physical
Overall Size
179mm x74.5mm x150mm (including handle)
Overall Weight
<750g (depending on device configuration)
Display
5.5-inch, resolution 720×1440
Screen Brightness
>500cd/m2
Touch Screen
Supports multi-touch
Battery Capacity
Polymer Battery 7.6V 4000mAh (equivalent
8000mAh)
Rechargeable & Removable
Standby time >350 hours
Charge time <3 hours
Expansion Card
NANO SIM card x 1
TF card x 1 (optional PSAMx2)
POGO Pin x 1
Communication
Type-C 2.0 USB x 1
Supports OTG function
Speaker
>92db (tested at a distance of 10cm)
Audio
Speaker (monophonic), microphone, earpiece
Main Button
Home button, Delete button, Back button, Confirm button
Side Button
Silicone buttons: Power key, Volume +/- key, Scan key x2
Sensor
Gravity sensor, Light sensor, Distance sensor, Vibration motor
Language Input Method
English, Pinyin, Wubi, handwriting input, supports soft
Language
Simplified Chinese, Traditional Chinese, English, Korean, Malaysian, Singaporean language packs, etc.
Barcode Collection (Optional)
2D Scanning
N6602-W2
Support for 1D
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar
Barcode Types
Postal barcodes: USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs, etc.
Support for 2D
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXin, etc.
Camera (Standard)
Rear Camera
13MP high-definition camera
Supports auto-focus, flash, anti-shake, macro photography
Front Camera
2MP color camera
NFC (Optional)
Operating
13.56MHz
Protocol Standards
Supports ISO14443A/B, 15693 protocols, etc.
Read / Write Range
2cm ~ 5cm
UHF RFID
Reader Chip
Nation RFID 3rn Generation UHF reader chip
Antenna
Circular polarization antenna (4.65dBi)
RF Air Int.
ISO 18000-6C/6B, EPC C1G2
GB/T 29768-2013 (Optional)
GJB 7377.1-2011/7377.1-2018A
Features
Temp/Humidity Prot. Sup.
DRM, Simult. ID
Tag data filter, RSSI
Op. Frequency
FCC (US) 902-928MHz
ETSI (EU) 865.6-867.6MHz
SRRC-MII (CN) 920-925MHz
Read Speed
>500 tags per second (circular polarization)
Cont. EPC Rd.
0-20M (Dep. on Config.)
Cont. EPC Wr.
0-20M (Dep. on Config.)
Env. Specs
Op. Temp.
-20℃～ +55℃
Storage Temp.
-40℃～ +70℃
Humidity
5% to 95%RH (no condensation)
Drop Specification
Can withstand a 1.2-meter drop to marble from all six sides
Tumble Test
0.5m continuous rolling, after rolling on six contact surfaces
Protection Rating
IP65
