Specifications
Product Overview

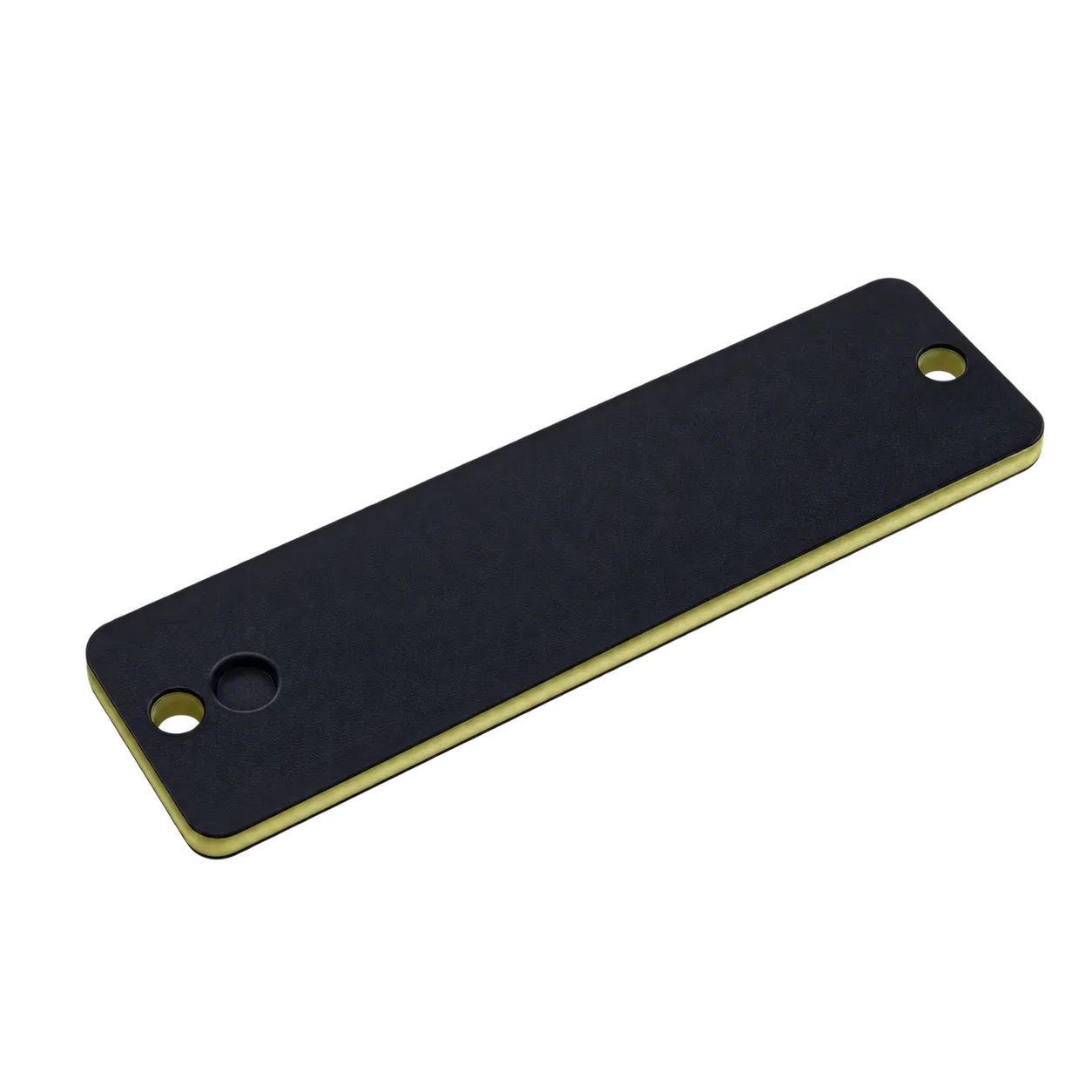

Product Name
7020 ON METAL TAG
Product Type
Classic PCB Material UHF On-Metal Tag
Description
Stable and reliable UHF on-metal tag for indoor and outdoor asset management.
RFID Specifications
Compliance
EPC Class 1 Gen 2 / ISO 18000-6C
Frequency
902–928 MHz or 865–868 MHz
Chip
NXP Ucode 8 (or custom as requested)
Memory
EPC 128-bit / User 0-bit
Read / Write
Yes
Data Storage
50 Years
Read Distance on Metal
Up to 4.6 m (EIRP = 4W)
Handheld Read Distance on Metal
Up to 4.6 m (with handheld reader)
Polarization
Liner
RF Performance Consistency
100% tested by Voyantic Tagformace
Environmental Specifications
Operating Temperature
-25°C to +85°C / -13°F to 185°F
Storage Temperature
-40°C to +110°C / -40°F to 230°F
Storage Humidity
5%–95%
IP Level
IP65
RoHS
Compatible
Applications
Application 1
Storage Management
Application 2
IT Equipment Management
Application 3
Metal Containers Management
Application 4
Metal Equipment Management
Application 5
Personnel Patrol Management
Application 6
Fixed Asset Management
Physical Specifications
Material
FR4
Color
Black
Dimensions
70 × 20 × 3.4 mm (3.150 × 0.787 × 0.118 in)
Warranty
1 Year
Installation Method
Screw / Rivet / Glue / 3M-300LSE Tape (Standard)
Package
Carton
Reliability Tests
Drop Test
1 m High / 200 Drops / Passed
Alcohol Test
95% Alcohol Test / Passed
Gasoline Test
Passed
High & Low Temperature Shock Test
-40°C to +150°C / 7 Cycles / Total 48 Hours
Material & Design Reliability
Both material and design have been tested for reliability.
Function Test
100% function tested by Voyantec Tagformace.
Advantages
RF Performance
Good RF performance; works stably on metal surfaces.
Reliability
Material and design tested for reliability.
Quality Control
100% function tested by Voyantec Tagformace.
Customization Options
Pre-Encoding
Supported
Laser Marking
TID / EPC / S/N
Custom Logo
Customer Logo Supported
