product-Laundry7015-H-MRI
— 218°C heat sealing, MRI 1.5T/3T listed, up to 13 m read range

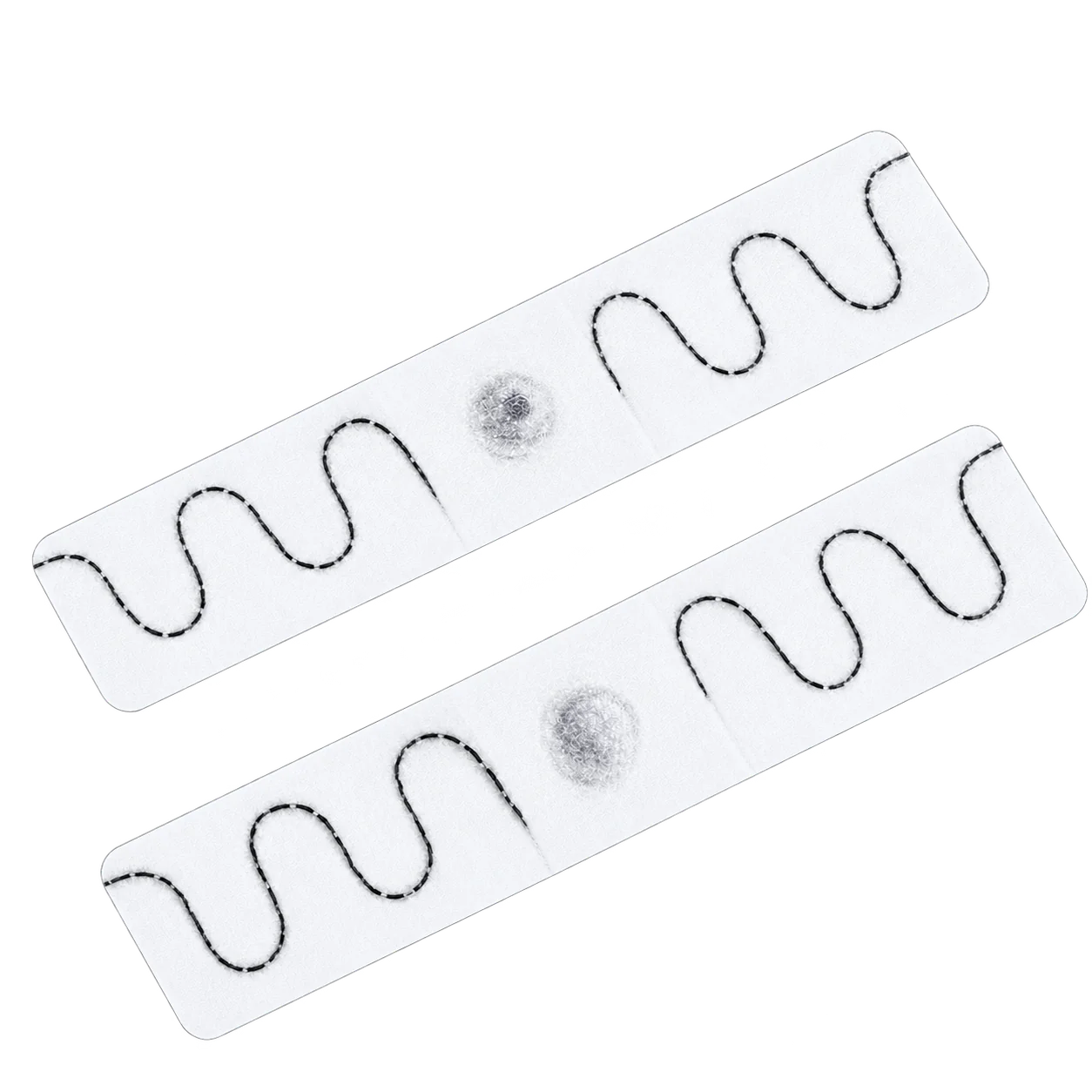

7015-H-MRI UHF RFID Heat-Seal Tag for Healthcare Linen

The 7015-H-MRI is a 70 × 15 × 1.5 mm heat-sealable textile UHF RFID tag for healthcare linen and industrial laundry tracking. Its NXP Ucode9 chip supports EPC Class 1 Gen 2 / ISO 18000-6C, and the specification lists MRI 1.5T/3T. It can be heat-sealed at 218°C for 18 seconds, sewn in, or placed in a pouch. The stated life is 200 wash cycles or three years from shipment, whichever comes first, and read range is up to 13 m.
Get Quote
Email us

Description

Specifications

RFID Specifications

EPC Standard
EPC Class 1 Gen 2
ISO Standard
ISO 18000-6C
Frequency
845–950 MHz
NXP Ucode9 Chip Option
Available
NXP Ucode9 EPC Memory
96 bit
NXP Ucode9 User Memory
0 bit
Read / Write
Yes
Data Storage
20 years
Power
Passive
Read Range
0–13 m (up to 13 m)
Polarization
Linear (listed as ‘Liner’ in source)

Industrial Laundry Performance

Service Life
200 wash cycles or 3 years from shipping date, whichever comes first
Washing
90°C (194°F), 15 minutes, 200 cycles
Pre-drying
180°C (356°F), 30 minutes, 200 cycles
Ironing
180°C (356°F), 12 seconds, 200 cycles
Sterilization
135°C (275°F), 20 minutes, 200 cycles
Mechanical Resistance
60 bar

Physical Specifications

Material
Textile
Dimensions
70 × 15 × 1.5 mm (source: 2.75 × 0.59 × 0.05 in)
Weight
Approx. 0.5 g per piece
Color
White
Sewing
Available
Pouch Installation
Available
Chemical Resistance
Normal common chemicals used in washing processes
Heat-Sealing Temperature
218°C
Heat-Sealing Duration
18 seconds
Heat-Sealing Pressure
0.5–0.8 MPa (5–8 kgf/cm²)

Packaging

Antistatic Bag
500 pieces per bag
Carton Dimensions
53 × 30 × 38 cm
Carton Weight
17.4 kg
Carton Quantity
30,000 pieces

Certifications

RoHS
Listed
SVHC
Listed
MRI
1.5T and 3T listed in source
OEKO-TEX Standard 100
Class II
GB18401
Listed
EECC
Listed in source
