Specifications
Product Overview
Product Name

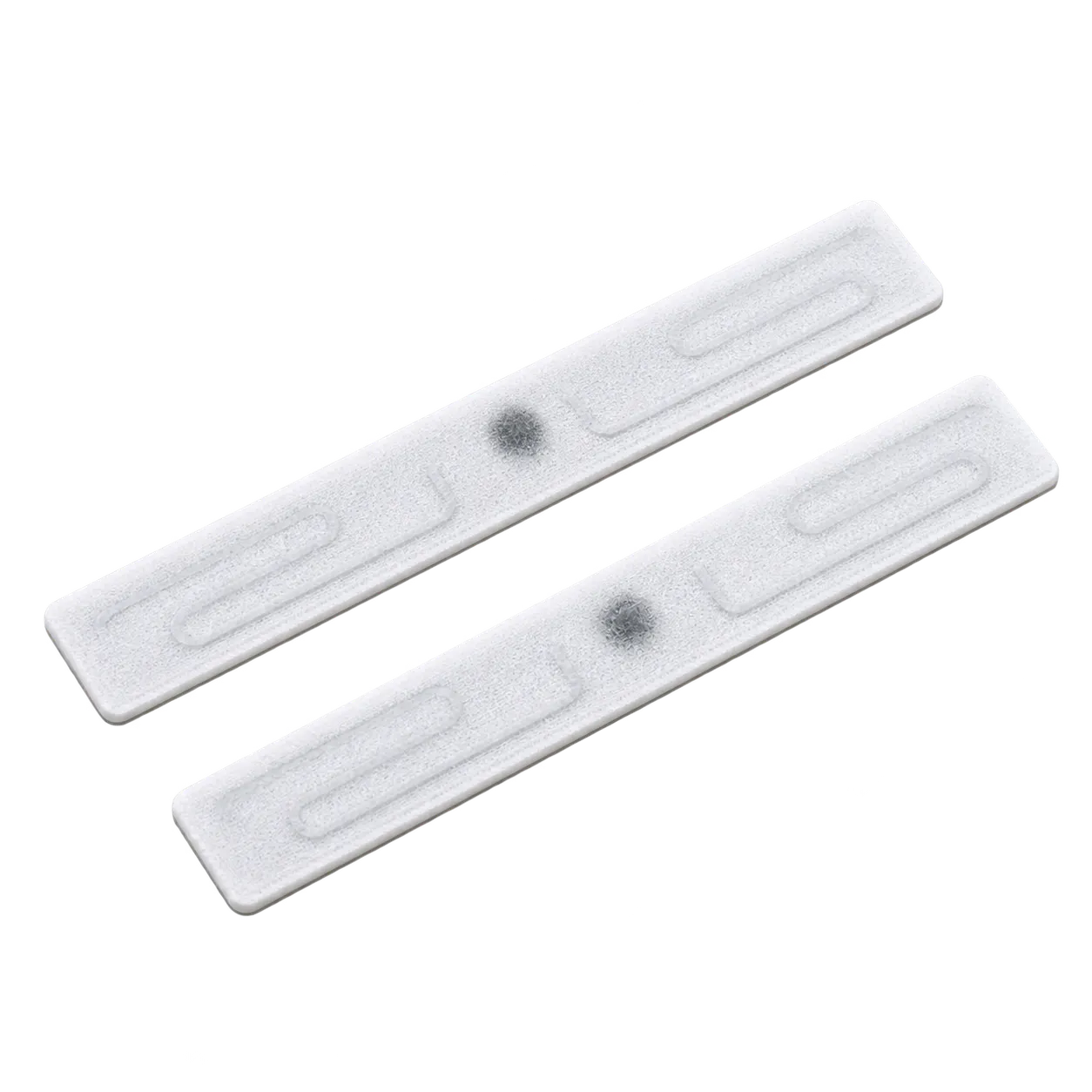

7010 UHF RFID LAUNDRY TAG
Product Type
Compact Industrial Textile RFID Laundry Tag
Description
Slim textile RFID tag designed for industrial laundry tracking with more than 200 washing cycles and long-range identification.
RFID Specifications
Compliance
EPC Class 1 Gen 2 / ISO18000-6C
Frequency
865–868 MHz or 902–928 MHz
Chip
NXP Ucode9
Memory
EPC 96-bit / User 0-bit
Read / Write
Yes
Data Storage
50 Years
Read Distance on Metal
Up to 3 m
Handheld Read Distance on Metal
Based on reader and environment
Polarization
Linear
RF Performance Consistency
100% function tested
Environmental Specifications
Operating Temperature
Washing: 90°C, 15 minutes, 200 cycles
Storage Temperature
Pre-drying: 180°C, 30 minutes, 200 cycles
Storage Humidity
Normal common chemicals in washing processes
IP Level
Mechanical resistance: 60 bars
RoHS
RoHS / SVHC / OEKO-Tex Std.100 Class II / GB18401 / EECC
Applications
Application 1
Industrial Washing Management
Application 2
Textile Management
Application 3
Textile Leasing Management
Application 4
Personnel Positioning Management
Application 5
Attendance Management
Application 6
Fire Equipment / Ski Facility / Plastic Tray Management
Physical Specifications
Material
Textile
Color
White
Dimensions
70 × 10 × 1.5 mm
Warranty
200 wash cycles or 3 years from shipping date (whichever comes first)
Installation Method
Sewing or putting in pouch
Package
Antistatic bag / Carton
Reliability Tests
Drop Test
Industrial washing: 200 cycles
Alcohol Test
Ironing: 180°C, 12 seconds, 200 cycles
Gasoline Test
Sterilization: 135°C, 20 minutes, 200 cycles
High & Low Temperature Shock Test
Water extractor resistance up to 60 bars
Material & Design Reliability
Both material and design have been tested for reliability.
Function Test
100% function tested by Voyantic Tagformace.
Advantages
RF Performance
Tested in real-world laundries for reliable RFID performance.
Reliability
Designed for repeated washing and textile management.
Quality Control
100% function tested by Voyantic Tagformace.
Customization Options
Installation
Pre-Encoding Supported
Pre-Encoding
Supported
Laser TID / EPC / S/N
TID / S/N
Custom Logo Supported
Customer Logo on Surface
