Specifications
Product Overview
Product Name

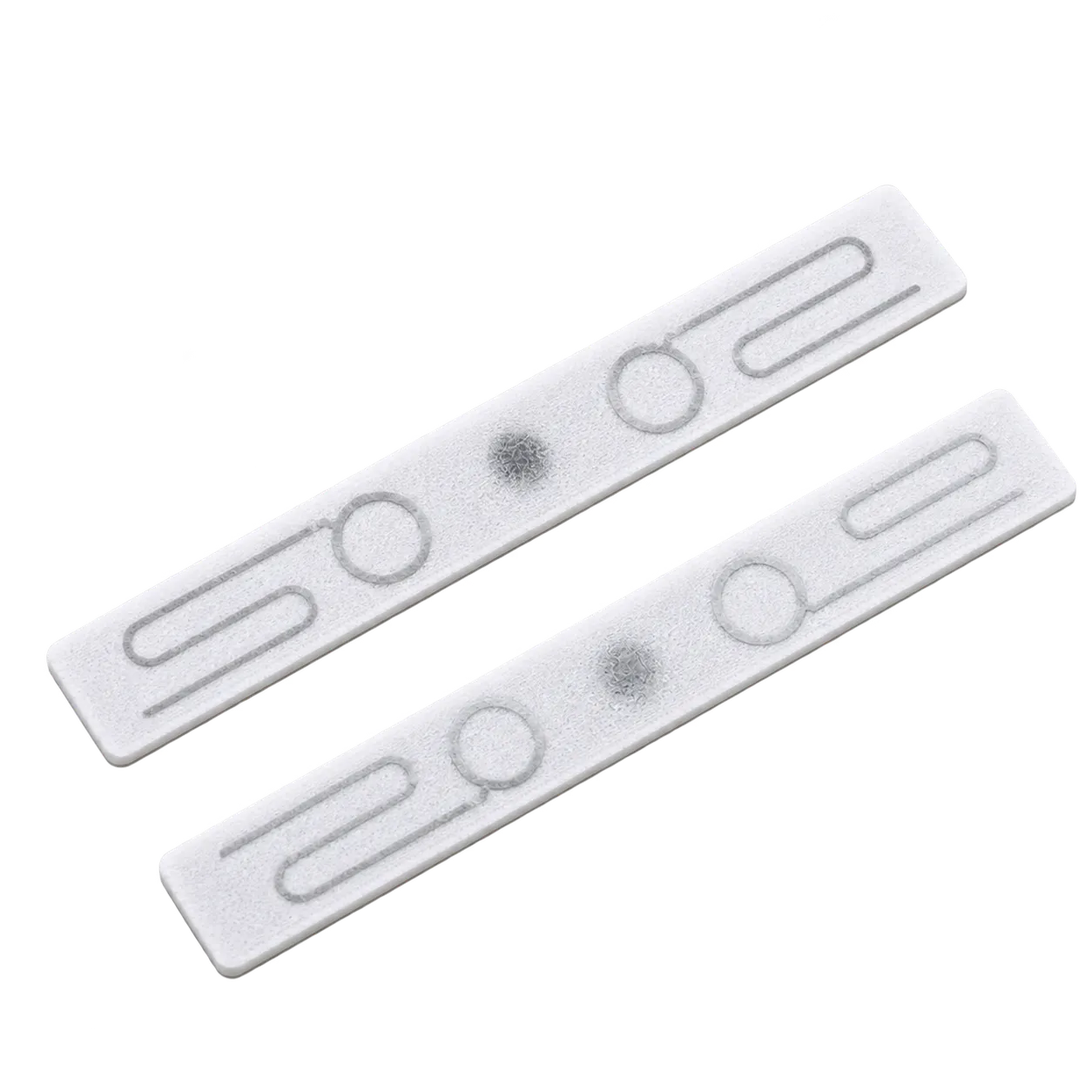

7010 UHF RFID Laundry Tag
Product Type
Slim Textile RFID Laundry Tracking Tag
Description
Slim textile RFID tag designed for industrial laundry tracking with long-range identification and more than 200 industrial washing cycles.
RFID Specifications
Compliance
EPC Class 1 Gen 2 / ISO18000-6C
Frequency
865–868 MHz or 902–928 MHz
Chip
NXP Ucode9
Memory
EPC 96-bit / User 0-bit
Read / Write
Yes
Data Storage
50 Years
Read Distance on Metal
Up to 3 m
Handheld Read Distance on Metal
Based on reader and environment
Polarization
Linear
RF Performance Consistency
100% function tested
Environmental Specifications
Operating Temperature
Washing: 90°C, 15 minutes, 200 cycles
Storage Temperature
Pre-drying: 180°C, 30 minutes, 200 cycles
Storage Humidity
Normal common chemicals in washing processes
IP Level
Mechanical resistance: 60 bars
RoHS
RoHS / SVHC / OEKO-Tex Std.100 Class II / GB18401 / EECC
Applications
Application 1
Industrial Washing Management
Application 2
Textile Management
Application 3
Textile Leasing Management
Application 4
Personnel Positioning Management
Application 5
Attendance Management
Application 6
Fire Equipment / Ski Facility / Plastic Tray Management
Physical Specifications
Material
Textile
Color
White
Dimensions
70 × 10 × 1.5 mm
Warranty
200 wash cycles or 3 years from shipping date (whichever comes first)
Installation Method
Sewing or putting in pouch
Package
Antistatic bag / Carton
Reliability Tests
Drop Test
Industrial washing: 200 cycles
Alcohol Test
Ironing: 180°C, 12 seconds, 200 cycles
Gasoline Test
Sterilization: 135°C, 20 minutes, 200 cycles
High & Low Temperature Shock Test
Water extractor resistance up to 60 bars
Material & Design Reliability
Both material and design have been tested for reliability.
Function Test
100% function tested by Voyantic Tagformace.
Advantages
RF Performance
Tested in real-world laundries for reliable RFID performance.
Reliability
Designed for repeated washing and textile management.
Quality Control
100% function tested by Voyantic Tagformace.
Customization Options
Installation
Pre-Encoding Supported
Pre-Encoding
Supported
Laser TID / EPC / S/N
TID / S/N
Custom Logo Supported
Customer Logo on Surface
