Specifications
Product Overview
Product Name

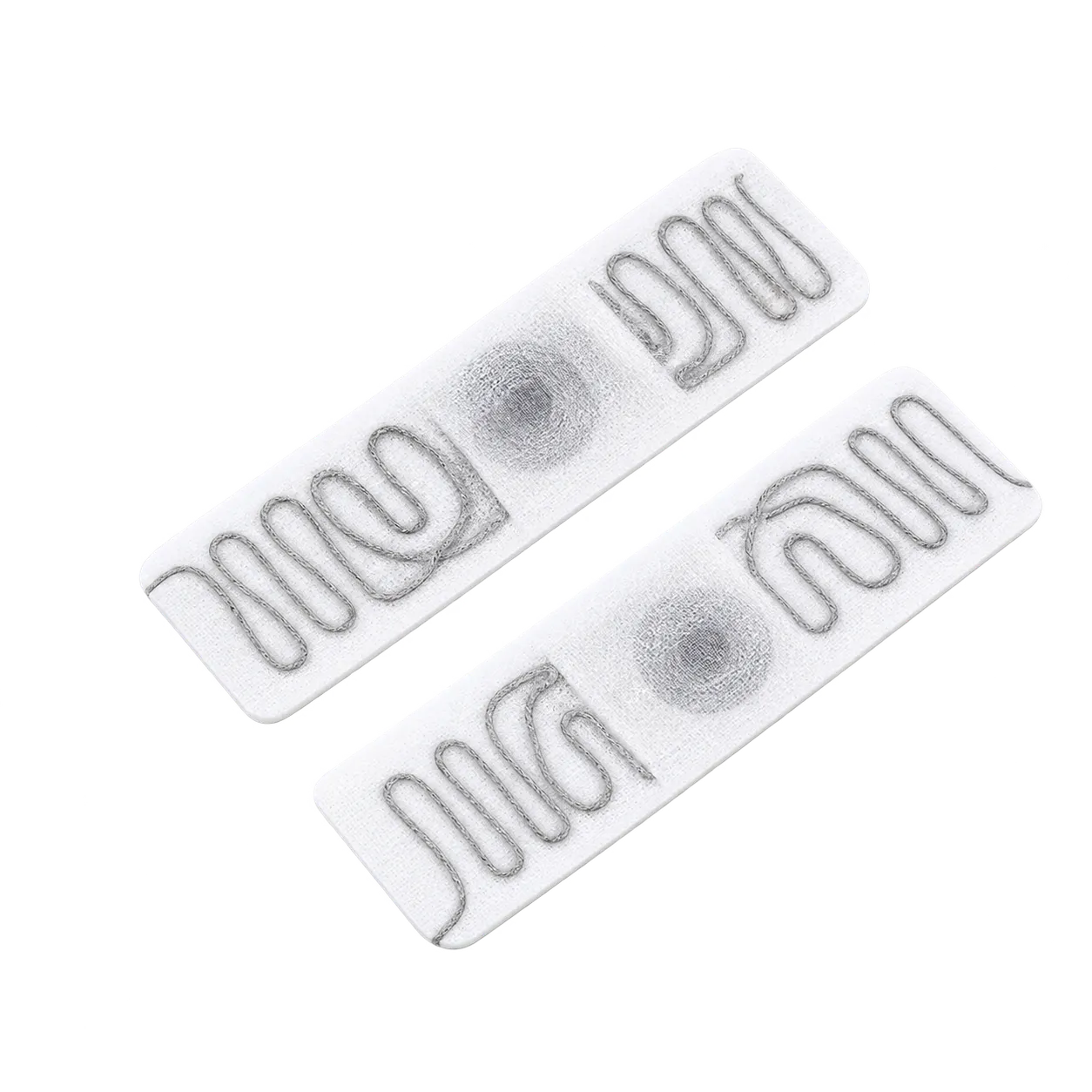

3515 UHF RFID LAUNDRY TAG
Product Type
Industrial Textile UHF RFID Laundry Tag
Description
Flexible textile RFID tag designed for industrial laundry and textile management with over 200 washing cycle life.
RFID Specifications
Compliance
EPC Class 1 Gen 2 / ISO18000-6C
Frequency
845–950 MHz
Chip
Impinj M730 / NXP Ucode9
Memory
EPC 128-bit, User 0-bit / EPC 96-bit, User 0-bit
Read / Write
Yes
Data Storage
50 Years
Read Distance on Metal
Up to 5 m
Handheld Read Distance on Metal
Reader dependent
Linear
Liner
RF Performance Consistency
100% function tested
Environmental Specifications
Operating Temperature
Washing: 90°C, 15 min, 200 cycles
Storage Temperature
Pre-drying: 180°C, 30 min, 200 cycles
Storage Humidity
Normal washing chemical resistance
IP Level
Mechanical resistance: 60 bars
RoHS
RoHS / SVHC / OEKO-Tex Std.100 Class II / GB18401 / EECC
Applications
Application 1
Industrial Washing Management
Application 2
Textile Management
Application 3
Textile Leasing Management
Application 4
Personnel Positioning Management
Application 5
Attendance Management
Application 6
Fire Equipment / Ski Facility / Plastic Tray Management
Physical Specifications
Material
Textile
Color
White
Dimensions
35 × 15 × 1.5 mm
Warranty
200 wash cycles or 3 years from shipping date
Installation Method
Heat sealing / Sewing / Pouch installation
Package
Antistatic bag / Carton
Washing & Reliability Tests
Drop Test
Industrial washing: 200 cycles
Alcohol Test
Ironing: 180°C, 12 seconds, 200 cycles
Gasoline Test
Sterilization: 135°C, 20 minutes, 200 cycles
High & Low Temperature Shock Test
Lifetime: More than 200 washing cycles
Material & Design Reliability
Both material and design have been tested for reliability.
Function Test
100% function tested by Voyantic Tagformace.
Advantages
RF Performance
Tested in real-world laundries for reliable RFID performance.
Reliability
Water extractor resistance up to 60 bars.
Quality Control
100% function tested by Voyantic Tagformace.
Customization Options
Installation
Laser TID / EPC / S/N Supported
Laser TID / EPC / S/N
Supported
Custom Logo
TID / S/N
Custom Logo
Customer Logo on Surface
