3010 – UHF RFID Inlay Label Tags

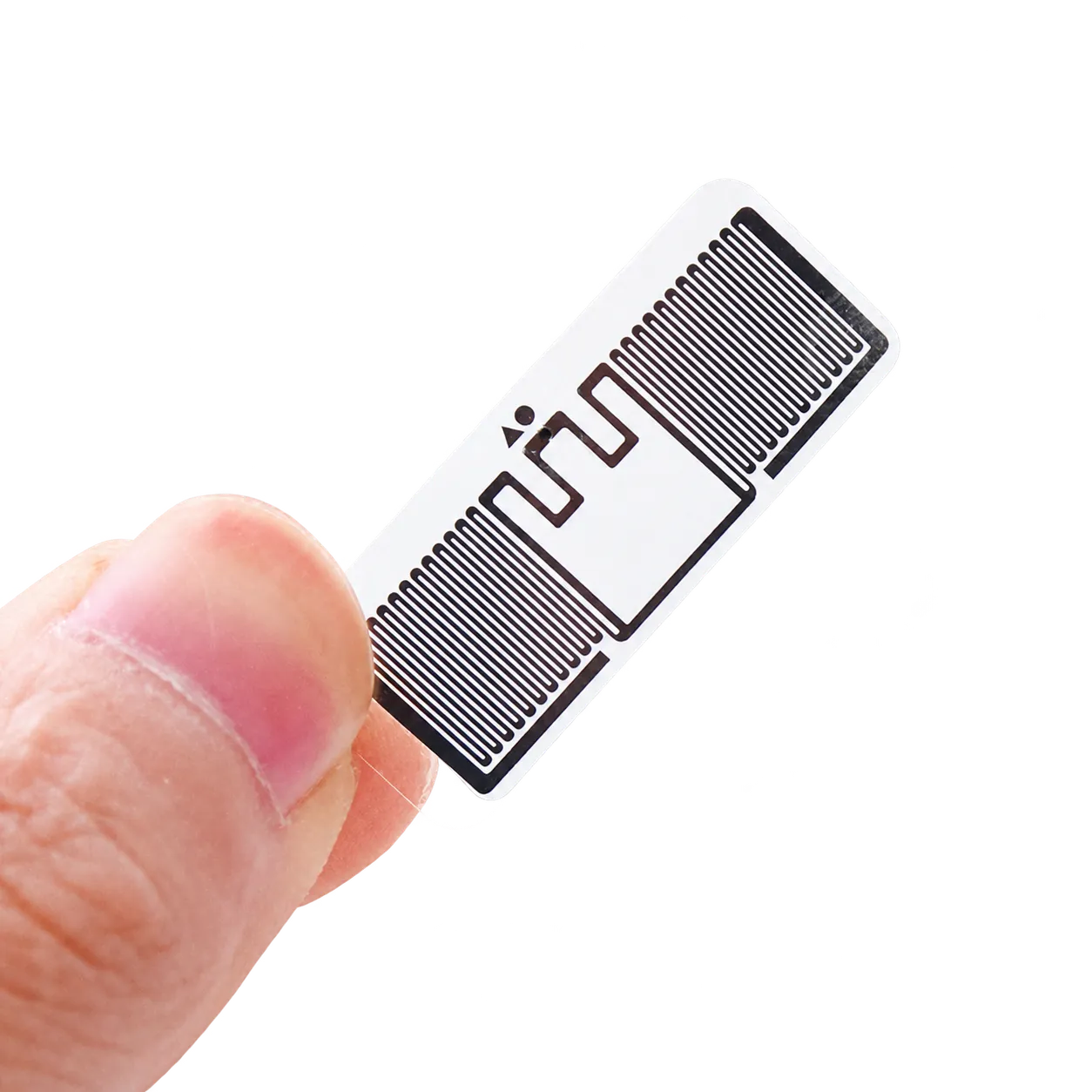

The 3010 is a compact passive UHF RFID inlay designed for reliable item-level identification and tracking. Equipped with an NXP U8 chip and an aluminum-etched antenna, it supports ISO/IEC 18000-6C and EPC Class 1 Gen 2 across 860–960 MHz. With 128-bit EPC memory, 2,000 V ESD protection, 10-year data retention and a -40°C to +70°C operating range, it provides stable performance for inventory, asset and supply-chain applications.

Description

Specifications

Basic Parameter

Product Model

3010

Chip

NXP U8

Base Material

PET

Inlay Size

30 × 10 mm

Working Mode

Passive

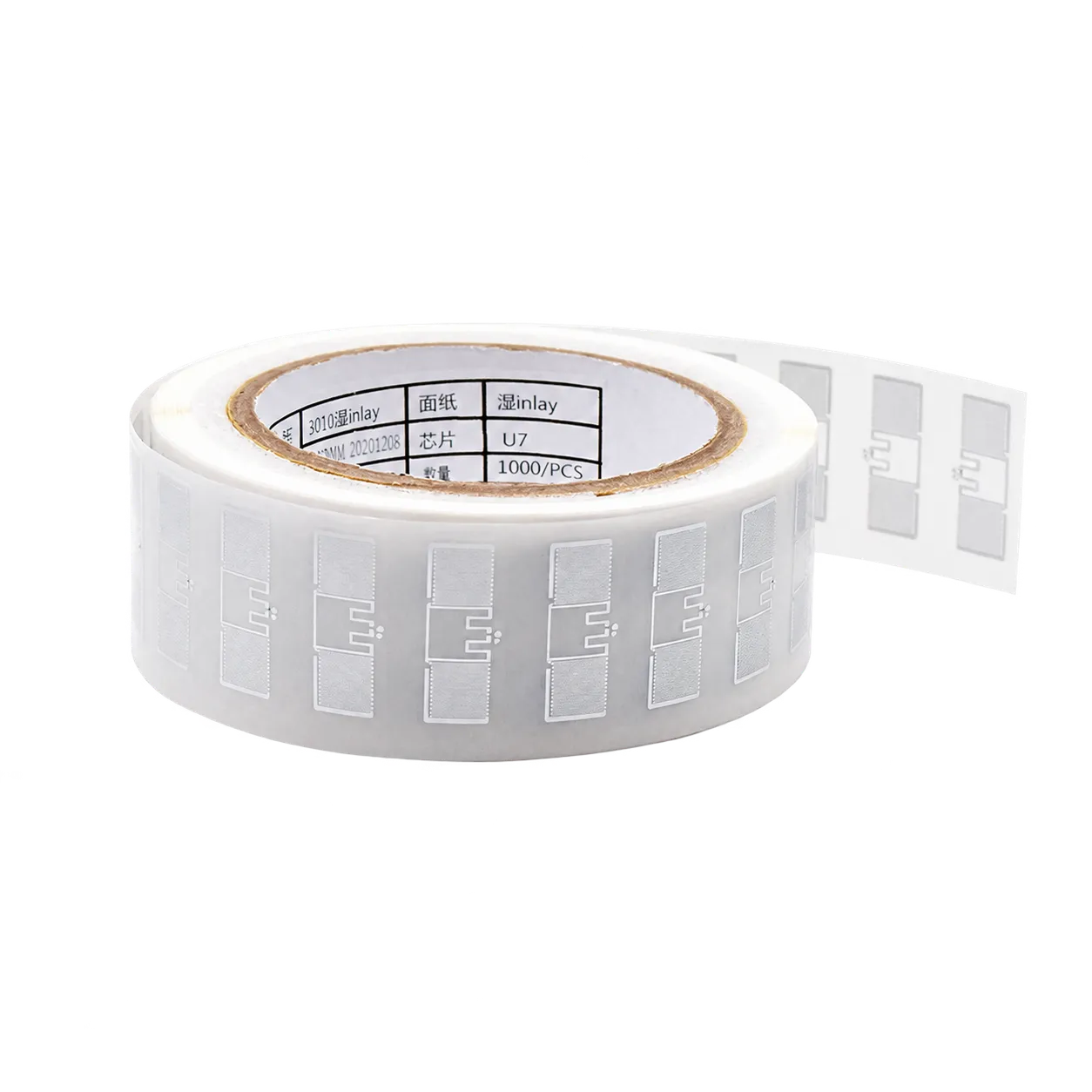

Delivery Format

Roll

RF Performance & Memory

Frequency Range

860–960 MHz

Air Interface Protocol

ISO/IEC 18000-6C, EPC Class 1 Gen 2

EPC Memory

128 bits, Read & Write

TID Memory

48 bits, Read

Access Password

32 bits

Kill Password

32 bits

Antenna Process

Aluminum Etching (AL 10 μm)

Data Retention

10 years

Antistatic Property

ESD 2000 V

Environmental & Packaging

Operating Temp / Humidity

-40°C to +70°C / 20%–90% RH

Storage Temp / Humidity

-20°C to +50°C / 20%–90% RH

Recommended Storage

20°C–30°C / 50% RH

Roll Quantity

2,000 pcs/roll

Carton Quantity

8 rolls/carton

Core Diameter

76 mm

Packaging

Anti-static & waterproof packaging

Working Mode

Passive

Handling & Quality

Handling

Avoid severe impact, extrusion or bending

Reject Mark

Black dot indicates rejected inlay
